RC RCB Hold Back Unidirectional Needle Roller Clutch Bearing

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

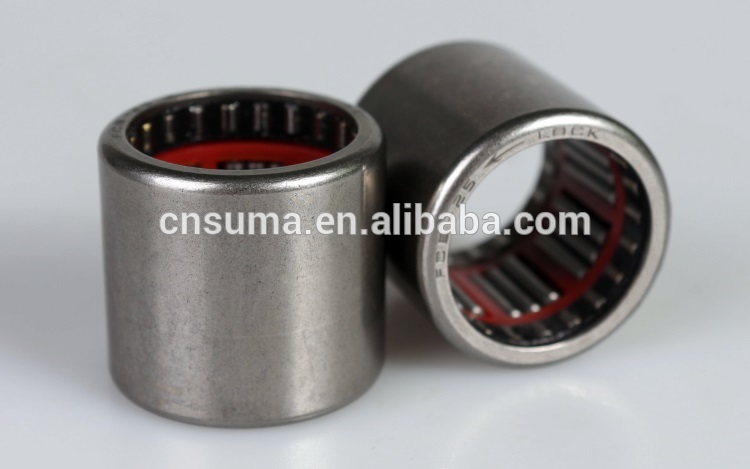

RC RCB Hold Back Unidirectional Needle Roller Clutch Bearing

Product Description

Data Sheet

Item	RC RCB
Material	Outer race: ST14, Holder: Nylon , Needle: Stainless Steel
Inner dia.	3.175 – 25.4 mm
Outer dia.	7.15-33.338 mm
Thickness	6.35-26.99 mm
Torque capacity	1.5-45 Nm
Weight	2-44.8 g
Package	singer package or as your requirements
Delivery time	7-10 days

Feature

Three pieces needles equipped to be locking assembly function.
Torque increases double of the normal HF Model.
Allow high indexing frequencies due to their low mass.

Different Sizes For Your Reference

Item	Weight g	Main Dimension
Item	Weight g	Fw mm	D mm	C mm	Torque Nm
RC02	2	3.175	7.15	6.35	1.5
RC040708	3.5	6.35	11.112	12.7	1.9
RC040708-FS	3.5	6.35	11.112	12.7	1.9
RC061008	4.7	9.525	15.875	12.7	4.83
RC061008-FC	4.7	9.525	15.875	12.7	4.83
RC081208	9.2	12.7	19.05	12.7	7.9
RC081208-FS	9.2	12.7	19.05	12.7	7.9
RC101410	14.5	15.875	22.225	15.88	15.4
RC101410-FC	14.5	15.875	22.225	15.88	15.4
RC121610	17	19.05	25.4	15.88	20.9
RC121610-FS	17	19.05	25.4	15.88	20.9
RC162110	16.2	25.4	33.338	15.88	45
RC162110-FC	16.2	25.4	33.338	15.88	45
RCB061014	12	9.525	15.875	22.22	4.83
RCB061014-FS	12	9.525	15.875	22.22	4.83
RCB081214	16	12.7	19.05	22.22	7.9
RCB081214-FC	16	12.7	19.05	22.22	7.9
RCB101416	21.3	15.875	22.225	25.4	15.4
RCB101416-FS	21.3	15.875	22.225	25.4	15.4
RCB121616	26.5	19.05	25.4	25.4	20.9
RCB121616-FC	26.5	19.05	25.4	25.4	20.9
RCB162117	44.8	25.4	33.338	26.99	45
RCB162117-FS	44.8	25.4	33.338	26.99	45
