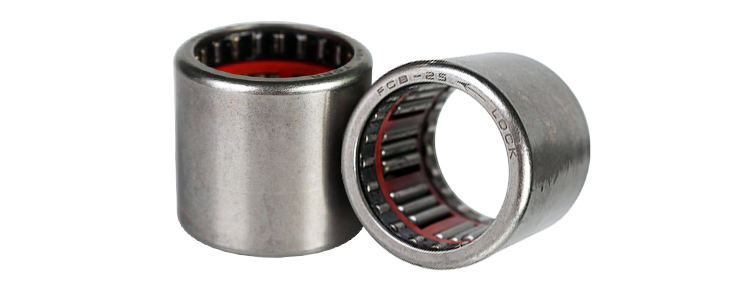

FCB 12 MOUNTER BEARINGS ONEWAY NEEDLE ROLLER BEARING
Three pieces needles equipped to be locking assembly function. Torque increases double of the normal HF Model. Allow high indexing frequencies due to their low mass.
| Item | FC FCB |
| Material | Outer race: ST14, Holder: Nylon , Needle: Stainless Steel |
| Inner dia. | 18 mm |
| Outer dia. | 18 mm |
| Thickness | 26 mm |
| Torque capacity | 12.2 Nm |
| Weight | 18 g |
| Package | singer package or as your requirements |
| Delivery time | 7-10 days |
DIFFERENT SIZES FOR YOUR REFERENCE
| Item | Weight
g |
Main Dimension | |||
| Fw
mm |
D
mm |
C
mm |
Torque
Nm |
||
| FC4K | 1 | 4 | 8 | 6 | 0.34 |
| FC6 | 3 | 6 | 10 | 12 | 1.76 |
| FC6K | 3 | 6 | 10 | 12 | 1.76 |
| FC8 | 4 | 8 | 14 | 12 | 5.3 |
| FCL8K | 3.5 | 8 | 12 | 12 | 5 |
| FC10 | 4.8 | 10 | 16 | 12 | 6 |
| FCL10K | 4 | 10 | 14 | 12 | 5.3 |
| FC12 | 11 | 12 | 18 | 16 | 12.2 |
| FC14K | 13 | 14 | 20 | 16 | 17.3 |
| FC16 | 14 | 16 | 22 | 16 | 20.5 |
| FC20 | 17 | 20 | 26 | 16 | 28.5 |
| FC25 | 30 | 25 | 32 | 20 | 66 |
| FC30 | 36 | 30 | 37 | 20 | 90 |
| FC35 | 40 | 35 | 42 | 20 | 121 |
| FCB8 | 10 | 14 | 14 | 20 | 5 |
| FCB10 | 15 | 16 | 16 | 20 | 10 |
| FCB12 | 18 | 18 | 18 | 26 | 12.2 |
| FCB16 | 22 | 22 | 22 | 26 | 20.5 |
| FCB20 | 27 | 26 | 26 | 26 | 28.5 |
| FCB25 | 44 | 32 | 32 | 30 | 66 |
| FCB30 | 51 | 37 | 37 | 30 | 90 |
| FCB35 | 58 | 42 | 42 | 30 | 121 |
