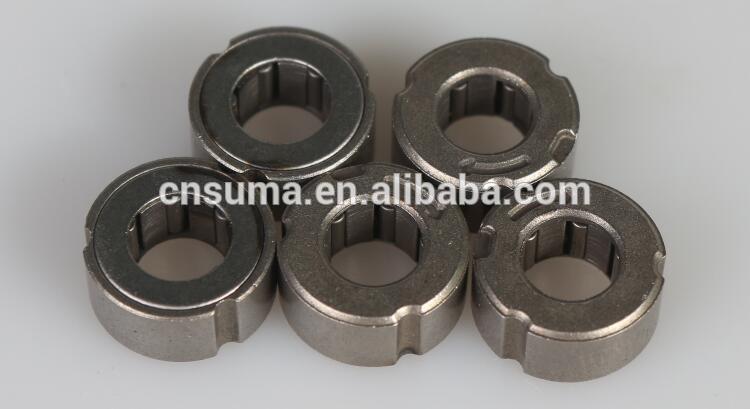

OWC1016 One way Bearing Needle Type Fishing Reels Bearing

Product Description

OWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and

make the structure more compact as well as higher performance.

MATERIAL:

The outer ring of OWC one-way clutch is made by sintered metal, and the spring is made by stainless steel . As the basic part of the clutch does not use resin , it is hard to be affected by

external environment.

CHARACTERISTIC:

1.The structure is all metal ,which gives full play to the excellent heat resistant characteristic.

2.Short in diameter and thin in depth ,which makes the miniaturization of machine become

possible.

3.Two standard : clockwise (R type) and anticlockwise (L type)

4.Because of the protection of protective layer, it can provide the performance of single functional

components.

5.The gears and pulleys (made by resin) are easily pushed ,which makes it easily to assemble.

OWC1016 One way Bearing Needle Type Fishing Reels Bearing

Shaft Dia. mm	Model	Weight	Size (mm)			Driving Torque
Shaft Dia. mm	Model	g	Inner Dia.	Outer Dia.	Height	( Nm )
4	OWC 410	1.8	4	10	5.4	2.8
5	OWC 511	2	5	11	5.4	3.5
6	OWC 612	2.3	6	12	5.4	5.2
8	OWC 814	2.8	8	14	5.4	6.1
10	OWC 1016	3	10	16	5.4	9.5
4	OWC 406	1.6	4	8	6	2.5
4	OWC 408	1.8	4	8	8	3.1
6	OWC 612-8.4	2.35	6	12	8.4	6.8
6	OWC 61407	2.1	6	14	7	6.6
6	OWC 720	2.5	6	12.7	7.5	7.3
6	OWC 087	2.38	6	10.2	8	4.6
6	OWC 178	3	6	10.2	15	7.3
8	OWC 81607	2.6	8	16	7	7.5
8	OWC 812	3	8	12.7	7.3	6.8
8	OWC 816-5.5	3.5	8	16	5.5	8.2
8	OWC 816-6.2	3.8	8	16	6.2	8.8
10	OWC 1008	3.35	10	16	8	9.7
10	OWC 1019	8.5	10	19	11	19.8
17	OWC 173512	22.5	17	35	12	78
17	OWC 173516	25.5	17	35	16	95
17	OWC 203316	23	20	33	16	108
MARKS:NON-STANDARD CAN BE PRODUCED
