OWC EWC HF HFL HK Fishing Reel One Way Needle Roller

Clutch Bearing

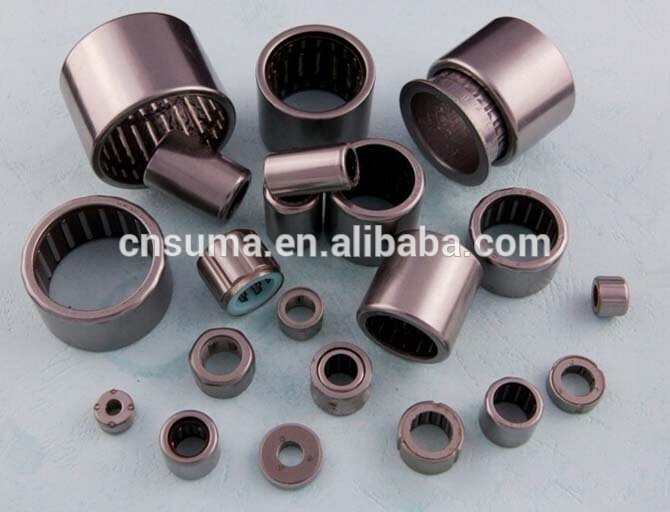

DESCRIPTION OF ONE WAY NEEDLE ROLLER BEARING
Material ST14 Low carbon steel (HF HFL OWC)
Structure OWC is small compact one way needle clutch
EWC is small compact one way needle clutch

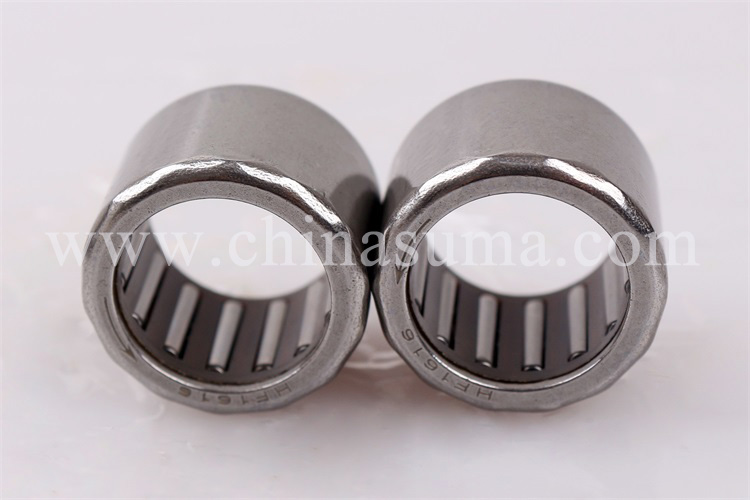

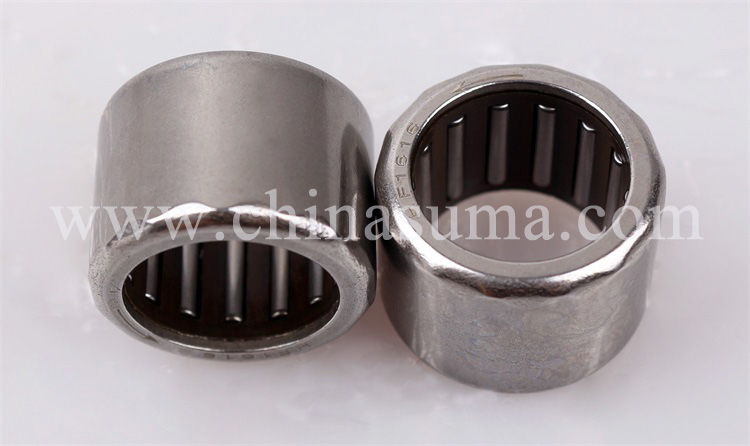

HF is drawn cup needle roller clutches with steel springs

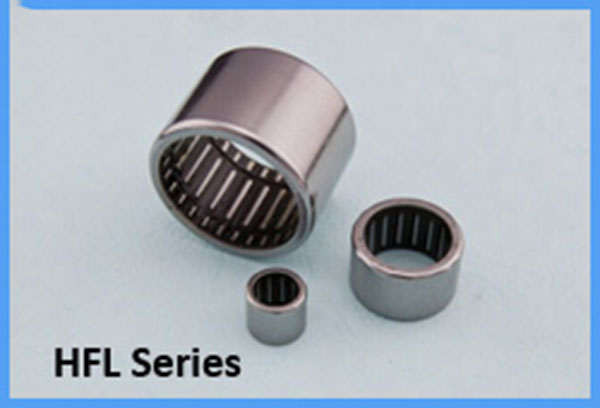

HFL is drawn cup roller clutch with bearing assemblies with steel springs
Application OWC: Fishing machinery, ATM, Counting machine, Printer, copier
EWC: Fishing Machinery
HF:fishing gear, counting machine, printer, agricultural machinery
HFL: Light Industry, truckle, printer, textile machine, packing machinery
Stock Rich stocks of above items
OEM Non-standard model is available to be customized
Package Roll pack, carton box, wooden box , pallet
Delivery time 1 day for sample, 3-5 day for medium order, 7-10 days for big order
Payment terms TT, L/C, D/A, D/P, Western Union, Paypal

OWC EWC HF HFL HK Fishing Reel One Way Needle Roller Clutch Bearing

OWC EWC HF HFL HK Fishing Reel One Way Needle Roller Clutch Bearing

Technical Parameter of OWC needler roller bearing



Shaft Dia. Model Weight Size  (mm) Driving Torque
mm g Inner Dia. Outer Dia. Height ( Nm )
4 OWC406GXRZ 1.6 4 8 6 2.5
4 OWC408GXRZ 1.8 4 8 8 3.1
4 OWC410GXRZ 1.8 4 10 5.4 2.8
5 OWC511GXRZ 2 5 11 5.4 3.5
6 OWC612GXRZ 2.3 6 12 5.4 5.2
OWC612GXLZ 2.3 6 12 5.4 5.2
8 OWC814GXRZ 2.8 8 14 5.4 6.1
8 OWC814GXLZ 2.8 8 14 5.4 6.1
OWC812GXRZ 2.8 8 12 5 5.8
10 OWC1016GXRZ 3 10 16 5.4 9.5
10 OWC1016GXLZ 3 10 16 5.4 9.5
6 OWC612-8.4 2.35 6 12 8.4 6.8
6 OWC610GXRZ 2.38 6 10.2 8 4.6
6 OWC614-7 2.1 6 14 7 6.6
6 OWC720 2.5 6 12.7 7.5 7.3
6 OWC178 3 6 10.2 15 7.3
8 OWC816-7 2.6 8 16 7 7.5
8 OWC812 3 8 12.7 7.3 6.8
8 OWC816-5.5 3.5 8 16 5.5 8.2
8 OWC816-6.2 3.8 8 16 6.2 8.8
10 OWC1016-8 3.35 10 16 8 9.7
10 OWC1019GXLZ 8.5 10 19 11 19.8
17 OWC173512 22.5 17 35 12 78
17 OWC173516 25.5 17 35 16 95
17 OWC203316 23 20 33 16 108
MARKS:NON-STANDARD CAN BE PRODUCED

Technical Parameter of HF Needle roller bearing



Shaft Diameter Clutch Designation Mass Approx Borndary Dimensions Torgue Ma Limiting Speed Suitable Drawn Cup Bearings
Fw D C Rotating Shaft Min-1 Rotatng Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm rpm
3 HF0306KF 0.9 3 6.5 6 0.2 36000 7000 HK0306TN
4 HF0406KF – 1 4 8 6 0.34 34000 8000 HK0408TN
HF0406KFR – 1 4 8 6 0.1 34000 8000 HK0408TN
6 HF0608KF 2.8 6 10 8 1.5 20000 11000 HK0608
HF0612KF HF0612 3 6 10 12 1.76 23000 13000 HK0608
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000 HK0608
HF061210 3.5 6 12 10 3 20000 13000 HK061208
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000 HK0808
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000 HK0808
– HF061210 3.2 8 12 10 3 16000 12000 HK0808
– HF081410 3.6 8 14 10 4.6 15000 11000 HK081410
– HF081610 4.1 8 16 10 5.5 15000 11000 HK081610
– HF081412 4 8 14 12 5 16000 12000 HK081410
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000 HK1010
HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000 HK1010
12 – HF1216 11 12 18 16 12.2 11000 8000 HK1212
14 – HF1416 13 14 20 16 17.3 9500 8000 HK1412
16 – HF1616 14 16 22 16 20.5 8500 7500 HK1612
18 – HF1816 16 18 24 16 24.1 7500 7500 HK1812
20 – HF2016 17 20 26 16 28.5 7000 6500 HK2010
25 – HF2520 30 25 32 20 66 5500 5500 HK2512
30 – HF3020 36 30 37 20 90 4500 4500 HK3012
35 – HF3520 40 35 42 20 121 3900 3900 HK3512
