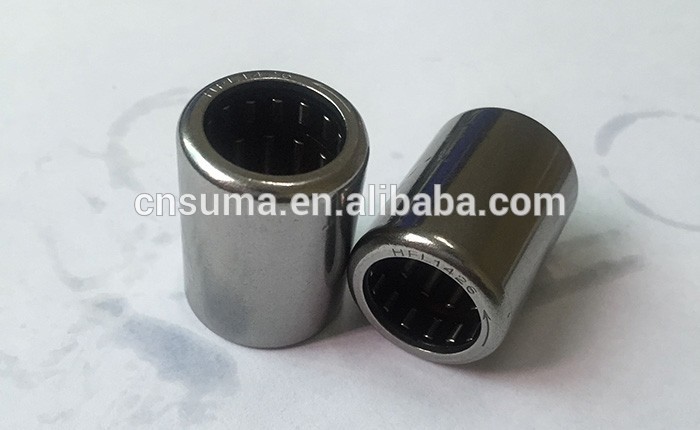

One Way Heavy Duty Full Complement Needle Roller Bearing HFL1426 from China needle bearing factory
Product Description
Description of One Way Heavy Duty Full Complement Needle Roller Bearing HFL1426 from China needle bearing factory
| Model | HFL1426 |
| Bore size (mm) | 14 |
| Outer race size (mm) | 26 |
| Thickness (mm) | 20 |
| Weight (g) | 20.3 |
Introduce of HFL series One Way Heavy Duty Full Complement Needle Roller Bearing
HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling’s both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.
Parameter of HFL series One Way Heavy Duty Full Complement Needle Roller Bearing
| Shaft
Diameter |
Clutch
Designation |
Mass
Approx |
Borndary Dimensions |
Torgue
Ma |
Basic Load
Ratings |
||||||
| Limiting Speed | |||||||||||
| Fw | D | C | Rotating
Shaft Min-1 |
Rotatng Outer
Ring Min-1 |
C | Co | |||||
| KN | |||||||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
| HFL | |||||||||||
| 3 | HFL0308KF | – | 3 | 3 | 3.6 | 8 | 1 | – | – | – | – |
| 4 | HFL0408KF | – | 3.5 | 4 | 8 | 8 | 1.5 | – | – | – | – |
| 6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | – | – |
| HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | – | – | |
| – | HFL061012K | 5 | 6 | 10 | 12 | – | 21000 | 12000 | – | – | |
| 8 | – | HFL081212K | 6 | 8 | 12 | 12 | – | 20000 | 12000 | – | – |
| – | HFL081412K | 7 | 8 | 14 | 12 | – | 19000 | 12000 | – | – | |
| HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
| HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | – | – | |
| 10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
| HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | – | – | |
| 12 | – | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
| 14 | – | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
| 16 | – | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
| 18 | – | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
| 20 | – | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
| 25 | – | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
| 30 | – | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
| 35 | – | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
