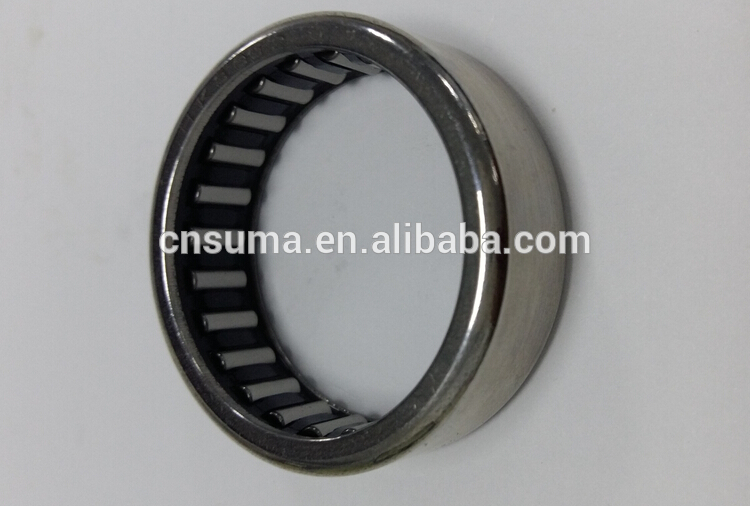

HK1712 Drawn Cup Roller Bearing Needle Bearing
HK1712 Drawn Cup Roller Bearing Needle Bearing
Product Description
Data Sheet
| Item | HK 1712 |
| Material | ST14 |
| Inner dia. | 17 mm |
| Outer dia. | 23 mm |
| Width | 12 mm |
| Delivery time | 7-10 days |
| Package | Wooden box, tube, pulley, etc |
| Application | fishing machinery, ATM, Counting machine, Printer, copier, etc |
| OEM | Accept |
Feature
HK is a one way needle clutch which applied flexibly of the technology of small bearings ,and
make the structure more compact as well as higher performance.
Different Sizes For Your Reference
| Shaft Diameter |
Bearing Designation | Mass Approx |
Boundary Dimension | Basic Load Rating | Limiting Speed | ||||
| Curent Code |
Original Code |
Fw | D | C | Dynamic | Static | Oil | ||
| mm | g | mm | N | rpm | |||||
| 15 | HKl5X20X12 | 7941/15 | 8.4 | 15 | 20 | 12 | 5800 | 6000 | 14000 |
| HKl5X20X16 | 7942/15 | 11.4 | 15 | 20 | 16 | 6000 | 6200 | 14000 | |
| HKl5X20X20 | 7943/15 | 13.8 | 15 | 20 | 20 | 6100 | 6400 | 14000 | |
| HKl512 | 37941/15 | 11.1 | 15 | 21 | 12 | 7000 | 8400 | 14000 | |
| BKl512 | 35941/15 | 12.7 | 15 | 21 | 12 | 7000 | 8400 | 14000 | |
| HKl514 | 47941/15 | 12.7 | 15 | 21 | 14 | 8500 | 10400 | 13000 | |
| HKl515 | 14.2 | 15 | 21 | 15 | 9100 | 11400 | 13000 | ||
| BKl515 | 15 | 21 | 15 | 9800 | 11400 | 14000 | |||
| TAl515 | 15 | 22 | 15 | 11400 | 11400 | ||||
| TAl515Z | 15 | 22 | 15 | 11400 | 11400 | ||||
| HMKl515 | 15 | 22 | 15 | ||||||
| HKl516 | 57941/15 | 15 | 15 | 21 | 16 | 9800 | 11400 | 14000 | |
| BKl516 | 55941/15 | 16.5 | 15 | 21 | 16 | 9800 | 11400 | 14000 | |
| HKl518 | 15 | 21 | 18 | ||||||
| HKl520 | 15 | 21 | 20 | ||||||
| HMKl520 | 15 | 22 | 20 | ||||||
| HK1522 | SZ-439 | 20.4 | 15 | 21 | 22 | 10400 | 16500 | 14000 | |
| BKl522 | 22 | 15 | 21 | 22 | 10400 | 16500 | 14000 | ||
| HKl5X22X12 | 7948/15 | 12.5 | 15 | 22 | 12 | 14300 | 18400 | 13000 | |
| HKl5X22X12.5 | 7948/15K | 13.5 | 15 | 22 | 12.5 | 14300 | 18400 | 13000 | |
| 16 | HKl6X21X06 | 5.5 | 16 | 21 | 6 | 4200 | 5300 | 12000 | |
| HKl6X21X09 | 7.5 | 16 | 21 | 9 | 4400 | 5600 | 12000 | ||
| HKl610 | 27941/16 | 16 | 22 | 10 | |||||
| HKl612 | 37941/16 | 11.7 | 16 | 22 | 12 | 7100 | 9200 | 14000 | |
| BKl612 | 35941/16 | 13.8 | 16 | 22 | 12 | 7100 | 9200 | 14000 | |
| HKl612K | 16 | 22 | 12 | ||||||
| HKl614 | 47941/16 | 14.4 | 16 | 22 | 14 | 8800 | 9900 | 12000 | |
| HKl616 | 57941/16 | 15.8 | 16 | 22 | 16 | 10100 | 14300 | 14000 | |
| BKl616 | 55941/16 | 17.6 | 16 | 22 | 16 | 10100 | 14300 | 14000 | |
| HKl616-Asl | 16 | 22 | 16 | ||||||
| HKl617 | SZ-435 | 18 | 16 | 22 | 17 | 12900 | 17200 | 12000 | |
| HKl620 | 77941/20 | 16 | 22 | 20 | |||||
| HKl622 | 87941/16 | 21.7 | 16 | 22 | 22 | 11100 | 17400 | 14000 | |
| BKl622 | 85941/16 | 23.4 | 16 | 22 | 22 | 11100 | 17400 | 14000 | |
| 17 | HKl7X21.5X15 | 17BTMl5 | 10 | 17 | 21.5 | 15 | 6300 | 8600 | 11000 |
| HK1712 | 37941/17 | 12.2 | 17 | 23 | 12 | 6900 | 9300 | 13000 | |
| BKl712 | 35941/17 | 14.5 | 17 | 23 | 12 | 6900 | 9300 | 13000 | |
| HKl714 | 7941/17 | 14 | 17 | 23 | 14 | 6800 | 10200 | 10000 | |
| HKl716 | 57941/17 | 15.9 | 17 | 23 | 16 | 8500 | 12500 | 10000 | |
| BKl716 | 17 | 23 | 16 | 8500 | 12500 | 10000 | |||
| HKl718 | 7942/17 | 19 | 17 | 23 | 18 | 9500 | 10600 | 10000 | |
| HKl720 | 17 | 23 | 20 | 10000 | 11800 | 10000 | |||
| HKl722 | 7943/17 | 17 | 17 | 23 | 22 | ||||
| HK17X24X15 | 17 | 17 | 24 | 15 | 11200 | 12800 | 10000 | ||
| HK17X25X14 | 37942/17K | 17.7 | 17 | 25 | 14 | 13100 | 14700 | 10000 | |
| HKl7X25X15.5 | 20 | 17 | 25 | 15.5 | 9320 | 10400 | 10000 | ||
| HK17X25X18 | 57942/17K | 23.5 | 17 | 25 | 18 | 9500 | 10600 | 11000 | |
