China HFL283625 One Way Needle Bearing with Thee Rows Manufacturer and Supplier

English

HFL283625 One Way Needle Bearing with Thee Rows

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Type:: Other Type

Brand Name:: SUMA

Model Number:: HFL283625

Place of Origin:: Jiangsu, China (Mainland)

Bore Size:: 26.5 – 26.500001 mm

Outside Diameter:: 36 – 36.00001 mm

Precision Rating:: P6

Seals Type:: sealed

Product name:: HFL one way needle bearing

Shaft Dia.:: 26.5mm

Weight:: 65g

OEM:: Accept

Stock:: Rich

Delivery:: in stocks

Package:: single box or as your requirements

Material:: GCr15

Application:: industrial

Quality:: Super Precision

Supply Ability

50000 Piece/Pieces per Month HFL one way needle bearing

Packaging & Delivery

Packaging Details: single box or as your requirements for HFL one way needle bearing

Port: Shanghai ; Ningbo

Lead Time :: in stocks

Product Description

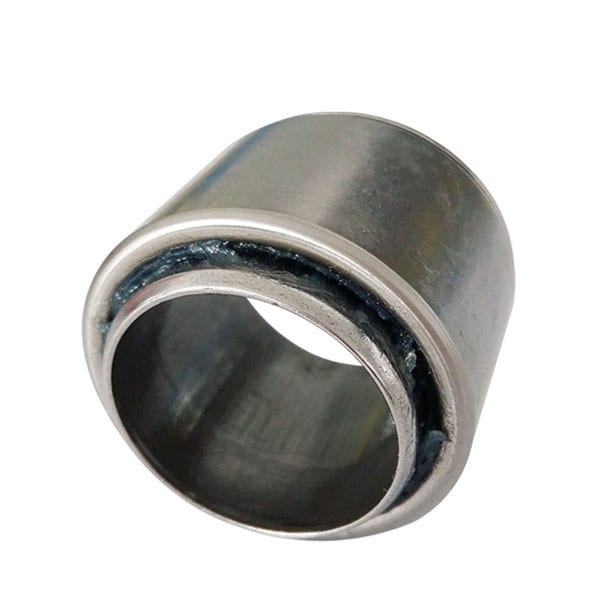

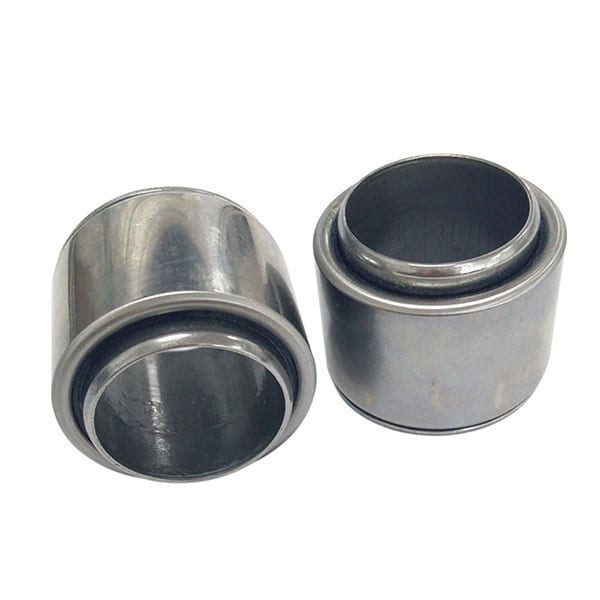

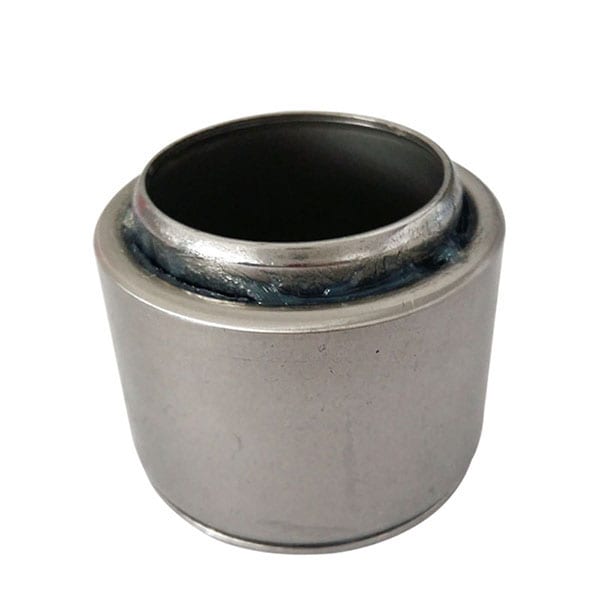

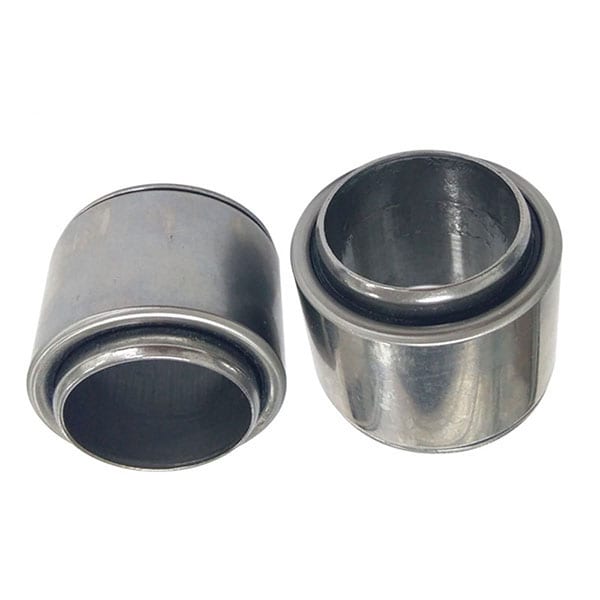

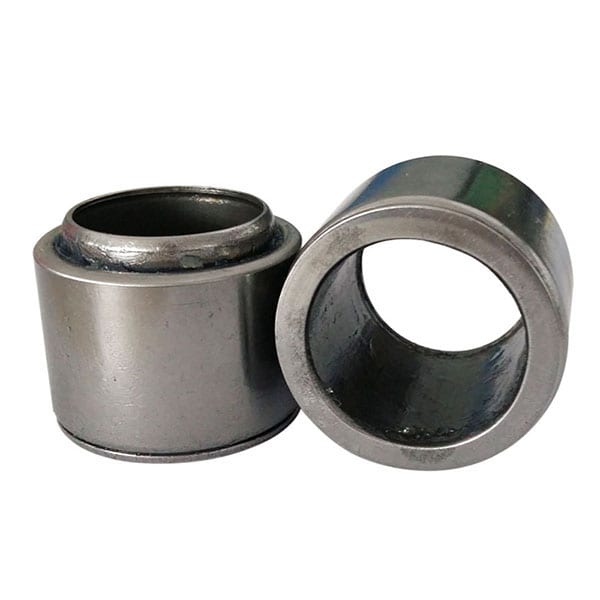

Description of HFL283625 One Way Needle Bearing with Thee Rows

Model	HFL283625
Bore size (mm)	26.5
Outer race size (mm)	28
Thickness (mm)	36
Weight (g)	48

Introduce of HFL series One Way Heavy Duty Full Complement Needle Roller Bearing

HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling’s both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.

Parameter of HFL series One Way Heavy Duty Full Complement Needle Roller Bearing

Shaft Diameter	Clutch Designation		Mass Approx	Borndary Dimensions			Torgue Ma			Basic Load Ratings

								Limiting Speed
				Fw	D	C		Rotating Shaft Min-1	Rotatng Outer Ring Min-1	C	Co
				Fw	D	C		Rotating Shaft Min-1	Rotatng Outer Ring Min-1	KN
mm	Plastic Springs	Steel Springs	g	mm			Nm	rpm
HFL
3	HFL0308KF	–	3	3	3.6	8	1	–	–	–	–
4	HFL0408KF	–	3.5	4	8	8	1.5	–	–	–	–
6	HFL0615KF	HFK0615	4	6	10	15	1.76	23000	13000	–	–
	HFL0615KFR	HFL0615R	4	6	10	15	0.5	23000	13000	–	–
	–	HFL061012K	5	6	10	12	–	21000	12000	–	–
8	–	HFL081212K	6	8	12	12	–	20000	12000	–	–
	–	HFL081412K	7	8	14	12	–	19000	12000	–	–
	HFL0822KF	HFL0822	7	8	12	22	3.15	17000	12000	4.05	4.15
	HFL0822KFR	HFL0822R	7	8	12	22	1	17000	12000	–	–
10	HFL1022KF	HFL1022	8	10	14	22	5.3	14000	11000	4.3	4.65
10	HFL1022KFR	HFL1022R	8	10	14	22	1.5	14000	11000	–	–
12	–	HFL1226	18	12	18	26	12.2	11000	8000	6.3	6.5
14	–	HFL1426	20	14	20	26	17.3	9500	8000	7.1	7.7
16	–	HFL1626	22	16	22	26	20.5	8500	7500	7.7	9
18	–	HFL1826	25	18	24	26	24.1	7500	7500	8.3	10.3
20	–	HFL2026	27	20	26	26	28.5	7000	6500	8.9	11.5
25	–	HFL2530	44	25	32	30	66	5500	5500	10.9	14.1
30	–	HFL3030	51	30	37	30	90	4500	4500	12.6	17.6
35	–	HFL3530	58	35	42	30	121	3900	3900	13	19.3
