HFL283625 Drawn Cup Three Row One Way Needle Roller Bearing Manufacturer

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

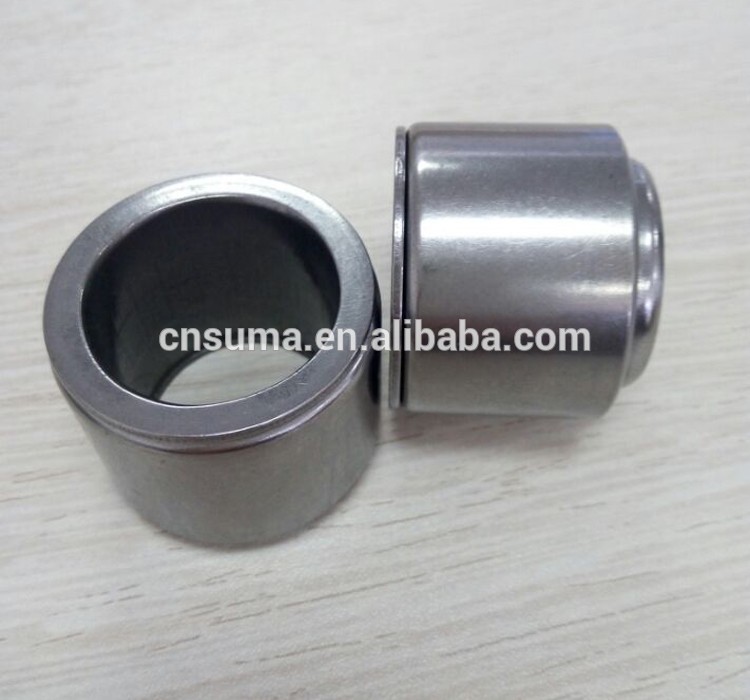

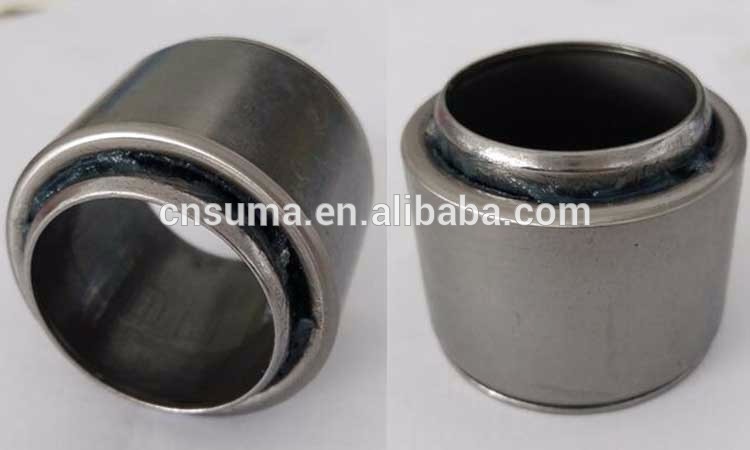

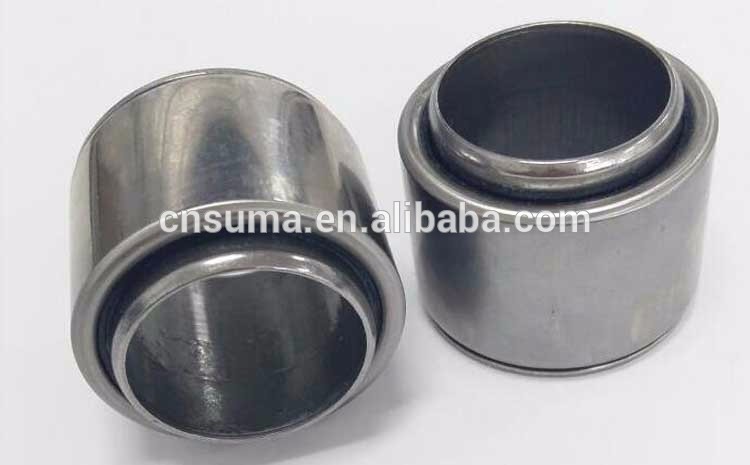

HFL283625 One Way Needle Roller Bearing Manufacturer

Product Description

Structure of bearing manufacturer :

HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling’s both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.

Product name	bearing manufacturer
Model	HFL0615
Material	ST14
Torque capacity	1.76Nm
Inner diameter	6mm
Outer diameter	10mm
Height	15mm
Weight	4g
Package	Roll + Carton Box / Wooden box
Payment terms	TT. L/C, D/A, D/P, Western Union
Delivery time	2-4 days for the sample, 7 days for big order

Catalogue of bearing manufacturer for your choice

Shaft Diameter			Mass Approx				Torgue Ma			Basic Load Ratings

	Clutch Designation			Borndary Dimensions				Limiting Speed
				Fw	D	C		Rotating Shaft Min-1	Rotatng Outer Ring Min-1	C	Co
				Fw	D	C		Rotating Shaft Min-1	Rotatng Outer Ring Min-1	KN
mm	Plastic Springs	Steel Springs	g	mm			Nm	rpm
3	HFL0308KF	–	3	3	3.6	8	1	–	–	–	–
4	HFL0408KF	–	3.5	4	8	8	1.5	–	–	–	–
6	HFL0615KF	HFK0615	4	6	10	15	1.76	23000	13000	–	–
	HFL0615KFR	HFL0615R	4	6	10	15	0.5	23000	13000	–	–
	–	HFL061012K	5	6	10	12	–	21000	12000	–	–
8	–	HFL081212K	6	8	12	12	–	20000	12000	–	–
	–	HFL081412K	7	8	14	12	–	19000	12000	–	–
	HFL0822KF	HFL0822	7	8	12	22	3.15	17000	12000	4.05	4.15
	HFL0822KFR	HFL0822R	7	8	12	22	1	17000	12000	–	–
10	HFL1022KF	HFL1022	8	10	14	22	5.3	14000	11000	4.3	4.65
10	HFL1022KFR	HFL1022R	8	10	14	22	1.5	14000	11000	–	–
12	–	HFL1226	18	12	18	26	12.2	11000	8000	6.3	6.5
14	–	HFL1426	20	14	20	26	17.3	9500	8000	7.1	7.7
16	–	HFL1626	22	16	22	26	20.5	8500	7500	7.7	9
18	–	HFL1826	25	18	24	26	24.1	7500	7500	8.3	10.3
20	–	HFL2026	27	20	26	26	28.5	7000	6500	8.9	11.5
25	–	HFL2530	44	25	32	30	66	5500	5500	10.9	14.1
30	–	HFL3030	51	30	37	30	90	4500	4500	12.6	17.6
30		HFL283625		36
35	–	HFL3530	58	35	42	30	121	3900	3900	13	19.3
