HF3520 Drawn Cup Needle Roller Bearing

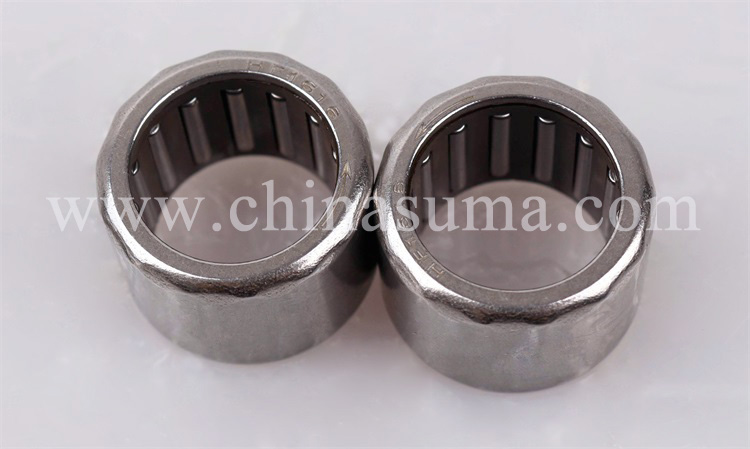

HF3520 Drawn Cup Needle Roller Bearing Featured Image

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

HF3520 Drawn Cup Needle Roller Bearing

Product Description

MODEL : HF 3520

Data Sheet

Item	HF 3520
Material	Gcr15, Stainless steel
Size (mm)	35x42x20
Weight (g)	40
Torque (N.m)	121
Precision	P6
Gurantee	1 year
Feature	Having a small cross section still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained.
Application	Suitable for unidirectional rotation device.
Working temperature range	with steel springs	-30 ° C to +120 ° C
	with plastic springs	-10 ° C to +70 ° C
Customize	Accept

Different Sizes For Your Reference

Shaft Diameter	Bearing Designation		Mass Approx	Borndary Dimensions			Pemissible Torque Md	Limiting Speed		Suitable Drawn Cup Bearings
Shaft Diameter	Bearing Designation		Mass Approx	Fw	D	C	Pemissible Torque Md	Rotating Shaft Min-1	Rotatng Outer Ring Min-1
mm	Plastic Springs	Steel Springs	g	mm			Nm	rpm	rpm
3	HF0306KF		0.9	3	6.5	6	0.2	36000	7000	HK0306TN
4	HF0406KF	–	1	4	8	6	0.34	34000	8000	HK0408TN
4	HF0406KFR	–	1	4	8	6	0.1	34000	8000	HK0408TN
6	HF0608KF		2.8	6	10	8	1.5	20000	11000	HK0608
	HF0612KF	HF0612	3	6	10	12	1.76	23000	13000	HK0608
	HF0612KFR	HF0612R	3	6	10	12	1.76	23000	13000	HK0608
		HF061210	3.5	6	12	10	3	20000	13000	HK061208
8	HF0812KF	HF0812	3.5	8	12	12	3.15	17000	12000	HK0808
	HF0812KFR	HF0812R	3.5	8	12	12	4	17000	12000	HK0808
	–	HF061210	3.2	8	12	10	3	16000	12000	HK0808
	–	HF081410	3.6	8	14	10	4.6	15000	11000	HK081410
	–	HF081610	4.1	8	16	10	5.5	15000	11000	HK081610
	–	HF081412	4	8	14	12	5	16000	12000	HK081410
10	HF1012KF	HF1012	4	10	14	12	5.3	14000	11000	HK1010
10	HF1012KFR	HF1012R	4	10	14	12	1.5	14000	11000	HK1010
12	–	HF1216	11	12	18	16	12.2	11000	8000	HK1212
14	–	HF1416	13	14	20	16	17.3	9500	8000	HK1412
16	–	HF1616	14	16	22	16	20.5	8500	7500	HK1612
18	–	HF1816	16	18	24	16	24.1	7500	7500	HK1812
20	–	HF2016	17	20	26	16	28.5	7000	6500	HK2010
25	–	HF2520	30	25	32	20	66	5500	5500	HK2512
30	–	HF3020	36	30	37	20	90	4500	4500	HK3012
35	–	HF3520	40	35	42	20	121	3900	3900	HK3512
