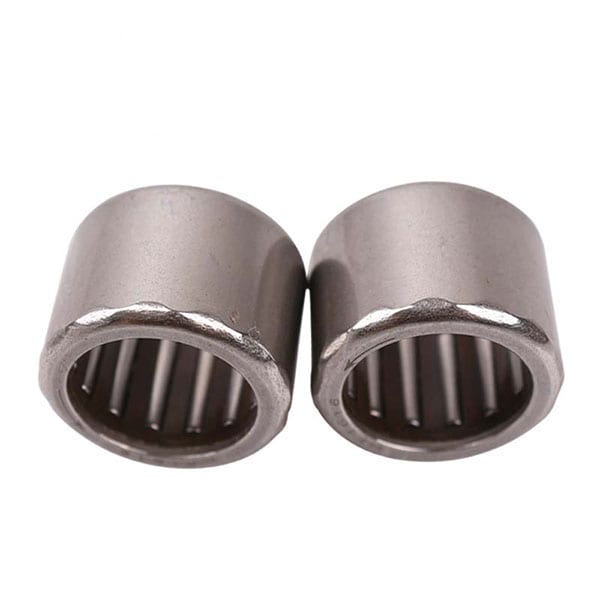

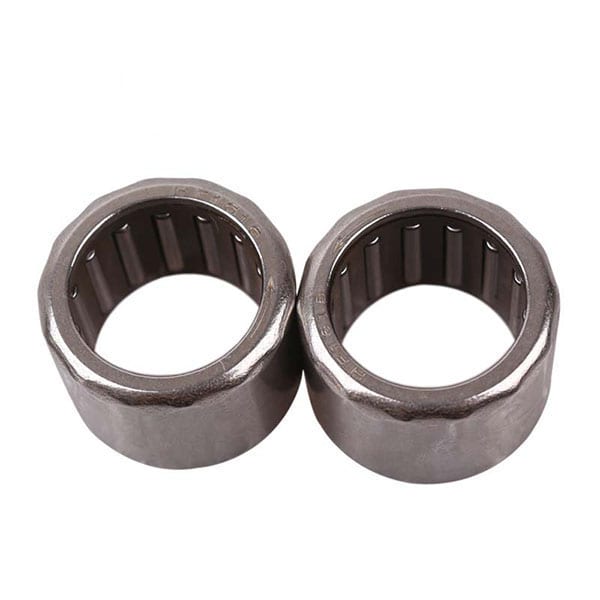

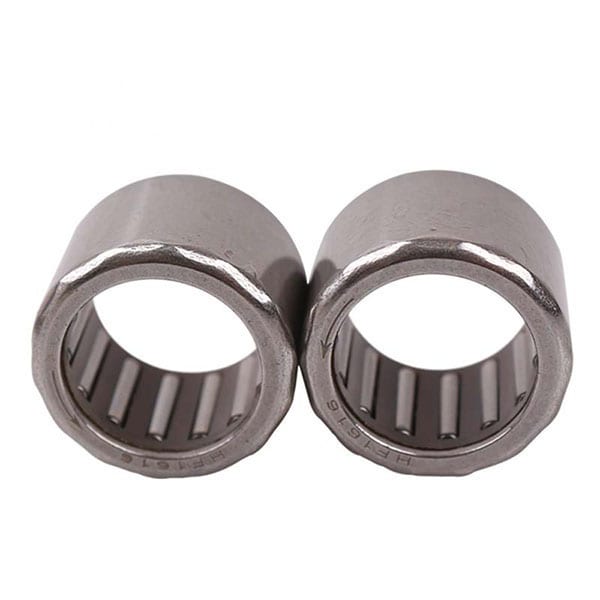

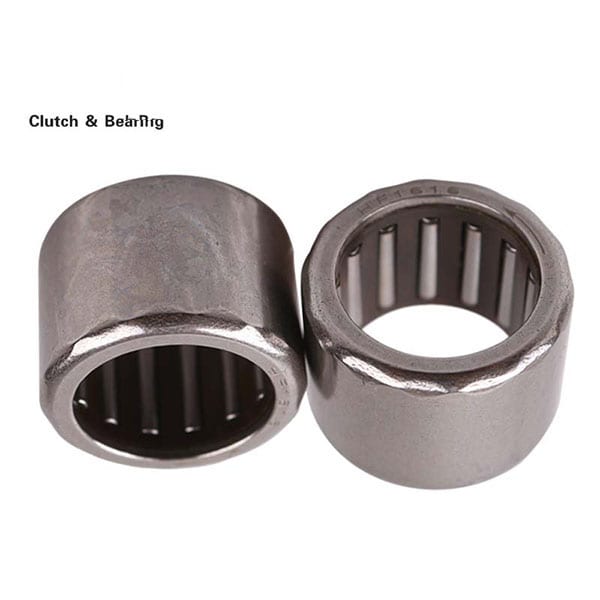

HF0812 One Way Needle Clutch Diabolo Bearings

HF0812 One Way Needle Clutch Diabolo Bearings Featured Image
  • HF0812 One Way Needle Clutch Diabolo Bearings
  • HF0812 One Way Needle Clutch Diabolo Bearings
  • HF0812 One Way Needle Clutch Diabolo Bearings
  • HF0812 One Way Needle Clutch Diabolo Bearings
  • HF0812 One Way Needle Clutch Diabolo Bearings
  • HF0812 One Way Needle Clutch Diabolo Bearings

Short Description:


Download as PDF

Product Detail

Product Tags

Overview
Quick Details
Type:
Other Type
Brand Name:
SUMA
Model Number:
HF0812
Place of Origin:
Jiangsu, China (Mainland)
Bore Size:
3 – 35 mm
Outside Diameter:
6.5 – 42 mm
Precision Rating:
P6
Seals Type:
Non sealed
Product name:
hf0812 one way bearing
Inner diameter:
3-35mm
Outer diameter:
6.5-42mm
Thickness:
6-20mm
Delivery time:
1 day after order is confirmed
Package:
Roll pack + Carton Box
Torque capacity:
0.2-121Nm
Shaft Overrunning speed:
36000-3900rpm
Material:
ST14
Weight:
0.9-40g

Supply Ability
500000 Piece/Pieces per Month hf0812 one way bearing

Packaging & Delivery
Packaging Details
Roll pack + Carton Box for hf0812 one way bearing
Port
Shanghai, Ningbo for hf0812 one way bearing
Lead Time :
In stock for hf0812 one way bearing


                                                     HF0812 One Way Needle Clutch Diabolo Bearings



Product Description



 Features of HF0812 one way bearing

♦ Having a small cross section still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained.
♦ Suitable for unidirectional rotation device.

SPECIFICATIONS
Model  HF0812
Material Outer race: ST14, Holder: Nylon , Needle: Stainless Steel
Inner diameter 8mm
Outer diameter 12mm
Thickness 12mm
Torque capacity  3.15Nm
Weight  3.5 g
Package  roll pack  + carton box
Delivery time  1 days for sample, 5-7 day for big order
Payment Terms TT, L/C, D/P, D/A, Western Union, Paypal

Catalogue of hf diabolo bearing for your choice

Shaft Diameter Bearing Designation Mass Approx Dimensions Permissible Torque  Limiting Speed Suitable Drawn Cup Bearings
Fw D C Rotating Shaft Min-1 Rotating Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm rpm
3 HF0306KF   0.9 3 6.5 6 0.2 36000 7000    HK0306TN
4 HF0406KF – 1 4 8 6 0.34 34000 8000    HK0408TN
HF0406KFR – 1 4 8 6 0.1 34000 8000    HK0408TN
6 HF0608KF   2.8 6 10 8 1.5 20000 11000    HK0608
HF0612KF HF0612 3 6 10 12 1.76 23000 13000    HK0608
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000    HK0608
  HF061210 3.5 6 12 10 3 20000 13000    HK061208
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000    HK0808
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000    HK0808
– HF061210 3.2 8 12 10 3 16000 12000    HK0808
– HF081410 3.6 8 14 10 4.6 15000 11000    HK081410
– HF081610 4.1 8 16 10 5.5 15000 11000      HK081610

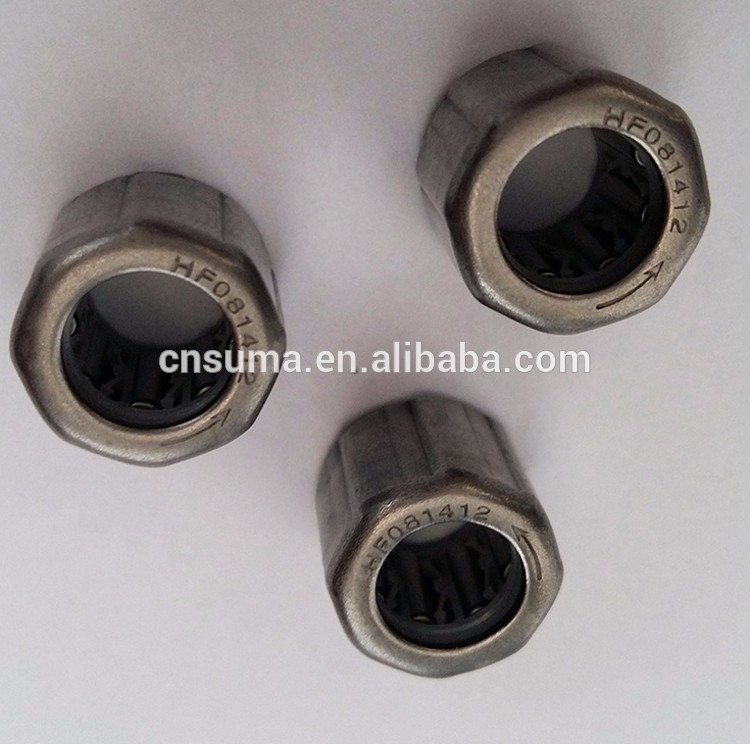

– HF081412 4 8 14 12 5 16000 12000    HK081410
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000    HK1010
HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000    HK1010
12 – HF1216 11 12 18 16 12.2 11000 8000    HK1212
14 – HF1416 13 14 20 16 17.3 9500 8000    HK1412
16 – HF1616 14 16 22 16 20.5 8500 7500    HK1612
18 – HF1816 16 18 24 16 24.1 7500 7500    HK1812
20 – HF2016 17 20 26 16 28.5 7000 6500    HK2010
25 – HF2520 30 25 32 20 66 5500 5500    HK2512
30 – HF3020 36 30 37 20 90 4500 4500    HK3012
35 – HF3520 40 35 42 20 121 3900 3900    HK3512

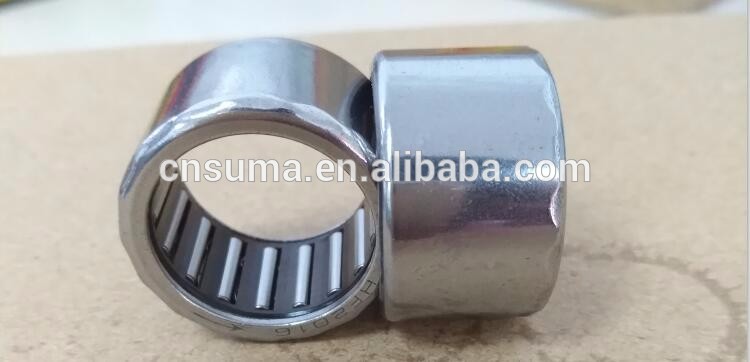

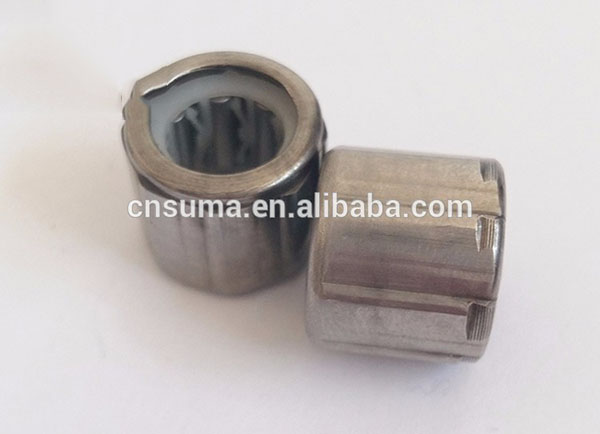

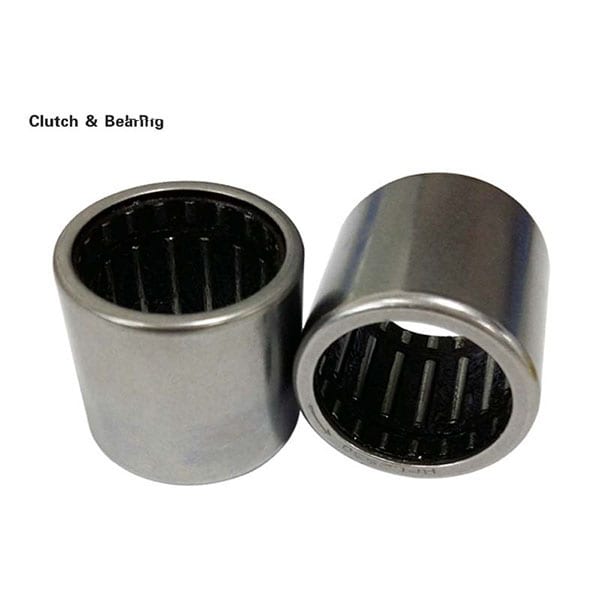

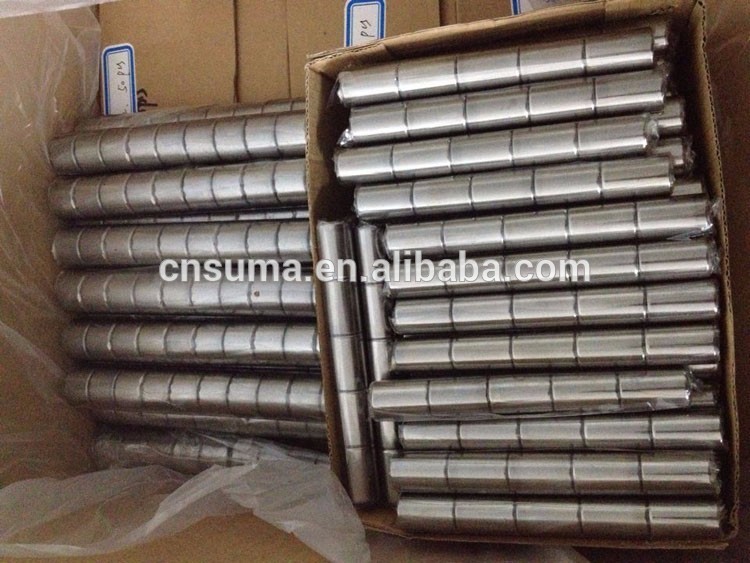

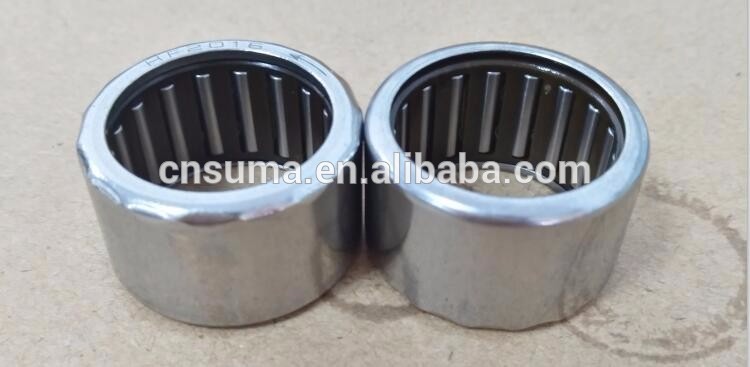

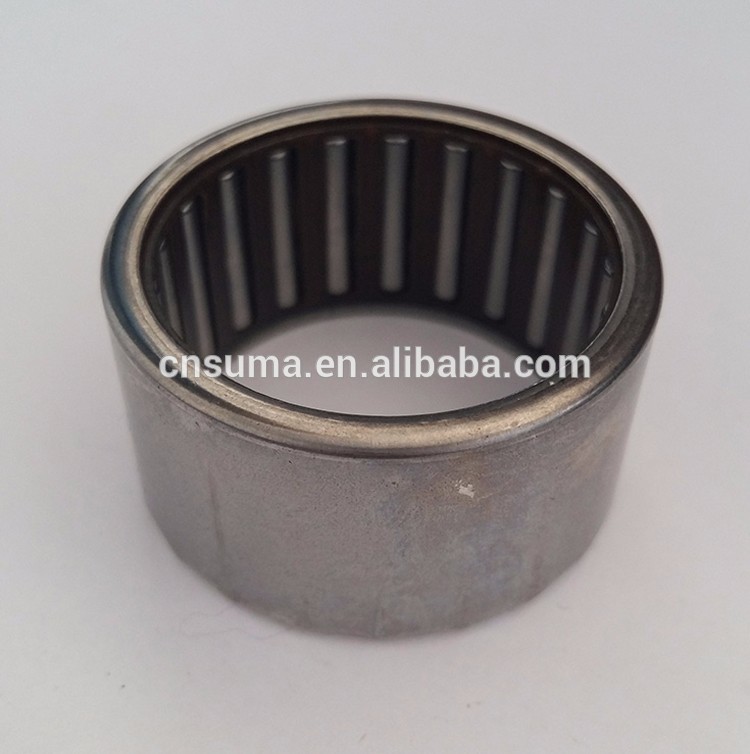

Detailed Images

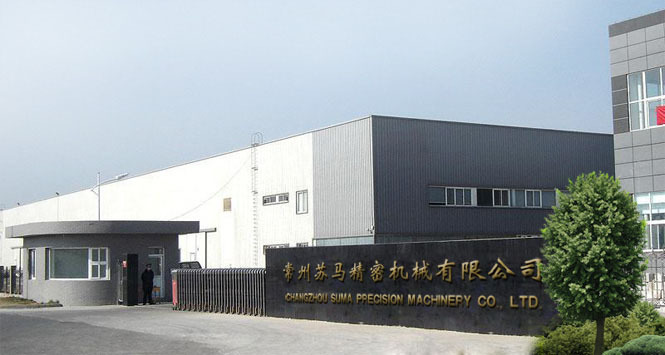

Company Information



Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

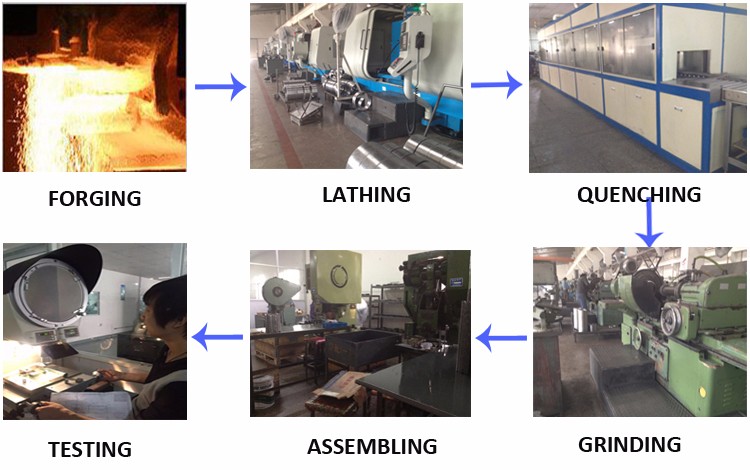

Production flow
Clients Visit
Certifications



FAQ

Q: How do you pack the goods?

  •  Small Items:

Each in small white box or Roll Pack or Tube pack - in 19x18x9CM carton box – 29*28*19CM carton box – Wooden box / Wooden pallet

  • Medium Items: 29*28*19cm carton box + Wooden box /Wooden pallet
  • Heavy Items: Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  •    Small items: In stock.
  •     Medium Items: 10-15 Days
  •     Big items: 20-25 Days
