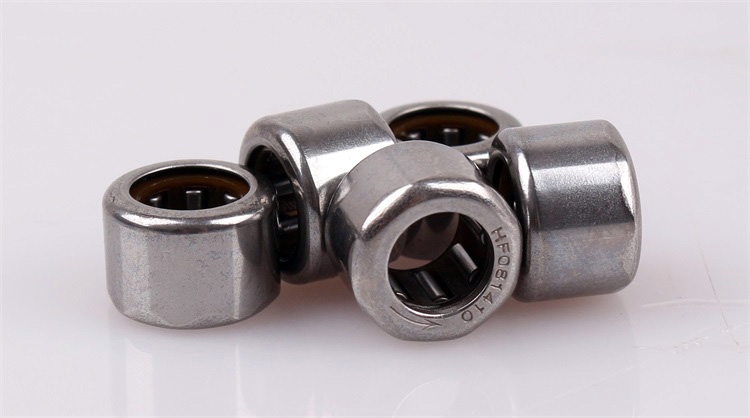

 HF series One Way Needle Roller Bearing with good quality in high feedback

Product Description

MODEL : HF SERIES ONE WAY NEEDLE BEARING



Data Sheet

Item HF series One Way Needle Bearings
Material Gcr15, Stainless steel
Size (mm) 3×6.5×6 ~ 35x42x20
Weight (g) 0.9 ~ 40
Torque (N.m) 0.2 ~ 121
Precision P0,P1,P3
Gurantee 3 Months
Feature Having a small cross section still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained.
Application Suitable for unidirectional rotation device.
Working temperature range with steel springs  -30 ° C to +120 ° C
with plastic springs  -10 ° C to +70 ° C
Customize Accept

Different Sizes For Your Reference


HF series One Way Needle Roller Bearing with good quality in high feedback



Shaft Diameter Bearing Designation Mass Approx Borndary Dimensions Pemissible Torque Md Limiting Speed Suitable Drawn Cup Bearings
Fw D C Rotating Shaft Min-1 Rotatng Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm rpm
3 HF0306KF 0.9 3 6.5 6 0.2 36000 7000 HK0306TN
4 HF0406KF – 1 4 8 6 0.34 34000 8000 HK0408TN
HF0406KFR – 1 4 8 6 0.1 34000 8000 HK0408TN
6 HF0608KF 2.8 6 10 8 1.5 20000 11000 HK0608
HF0612KF HF0612 3 6 10 12 1.76 23000 13000 HK0608
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000 HK0608
HF061210 3.5 6 12 10 3 20000 13000 HK061208
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000 HK0808
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000 HK0808
– HF061210 3.2 8 12 10 3 16000 12000 HK0808
– HF081410 3.6 8 14 10 4.6 15000 11000 HK081410
– HF081610 4.1 8 16 10 5.5 15000 11000 HK081610
– HF081412 4 8 14 12 5 16000 12000 HK081410
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000 HK1010
HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000 HK1010
12 – HF1216 11 12 18 16 12.2 11000 8000 HK1212
14 – HF1416 13 14 20 16 17.3 9500 8000 HK1412
16 – HF1616 14 16 22 16 20.5 8500 7500 HK1612
18 – HF1816 16 18 24 16 24.1 7500 7500 HK1812
20 – HF2016 17 20 26 16 28.5 7000 6500 HK2010
25 – HF2520 30 25 32 20 66 5500 5500 HK2512
30 – HF3020 36 30 37 20 90 4500 4500 HK3012
35 – HF3520 40 35 42 20 121 3900 3900 HK3512
