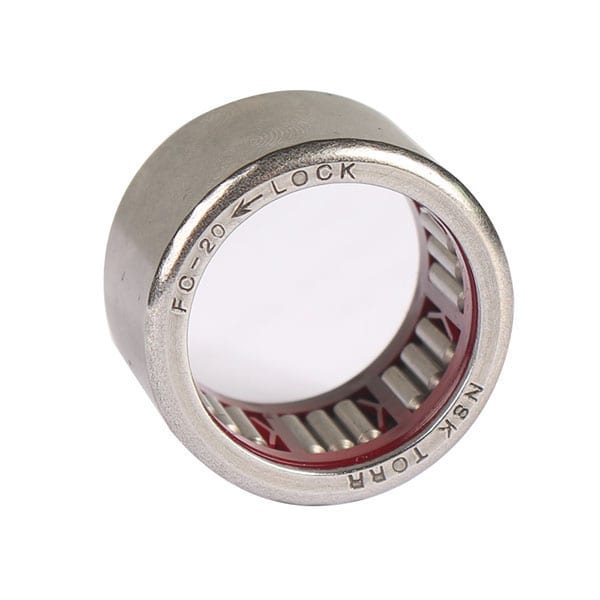

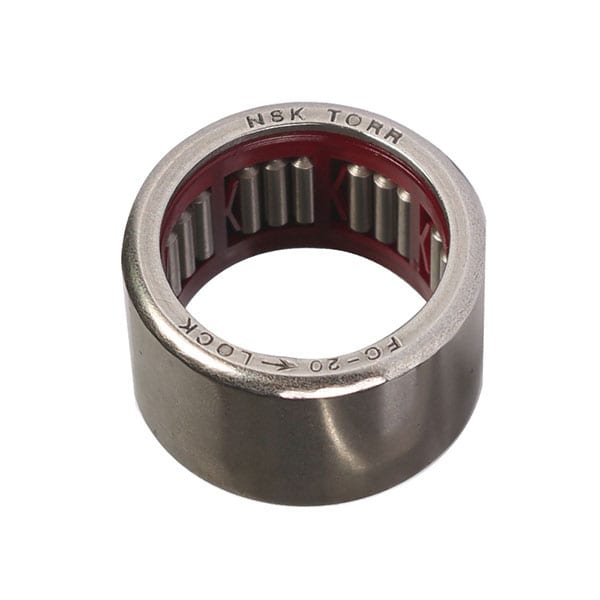

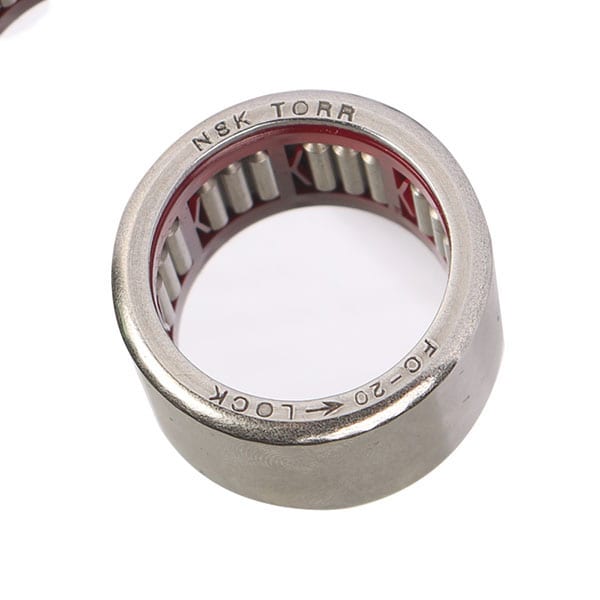

FC20 one way needle roller bearing wheel bearing

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Type:
Needle
Bore Size:
20 mm
Brand Name:
SUMA or OEM
Outside Diameter:
26 mm
Model Number:
FC20
Precision Rating:
P0
Seals Type:
OPEN
Number of Row:
Single Row
Place of Origin:
Jiangsu, China (Mainland)
Product name:
FC20 needle bearing
Material:
Gcr15
Thickness (mm):
16
Weight (g):
17
Torque (N.m):
28.5
Gurantee:
1 year
OEM:
Accept
Delivery Time:
1-2 Days
Market:
Global

Packaging & Delivery

Selling Units:
Single item
Single package size:
29X28X19 cm
Single gross weight:
25.0 kg
Package Type:
roll packing + carton box
Lead Time :
Quantity(Piece) 1 – 100 101 – 10000 10001 – 100000 >100000
Est. Time(day) 3 15 25 To be negotiated


Product Overviews



Item FC20 One Way Needle Bearing
Material Gcr15, Stainless steel
Size (mm) 20x26x16
Weight (g) 17
Torque (N.m) 28.5
Precision P6
Gurantee 1 year
Feature Having a small cross section still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained.
Application Suitable for unidirectional rotation device.
Operating temperature range  -30 ° C to +180 ° C
Customize Accept



Parameter of FC series needle roller bearing wheel bearing

Type Weight (g) Dimesion
Fw D C Rotational torque   (N.m)
FC4K 1 4 8 6 0.34
FC6 3 6 10 12 1.76
FC6K 3 6 10 12 1.76
FC8 4 8 14 12 5.3
FCL8K 3.5 8 12 12 5
FC10 4.8 10 16 12 6
FCL10K 4 10 14 12 5.3
FC12 11 12 18 16 12.2
FC14K 13 14 20 16 17.3
FC16 14 16 22 16 20.5
FC20 17 20 26 16 28.5
FC25 30 25 32 20 66
FC30 36 30 37 20 90
FC35 40 35 42 20 121
FCB8 10 14 14 20 5
FCB10 15 16 16 20 10
FCB12 18 18 18 26 12.2
FCB16 22 22 22 26 20.5
FCB20 27 26 26 26 28.5
FCB25 44 32 32 30 66
FCB30 51 37 37 30 90
FCB35 58 42 42 30 121

Application
Packaging
Company Information

Related Products

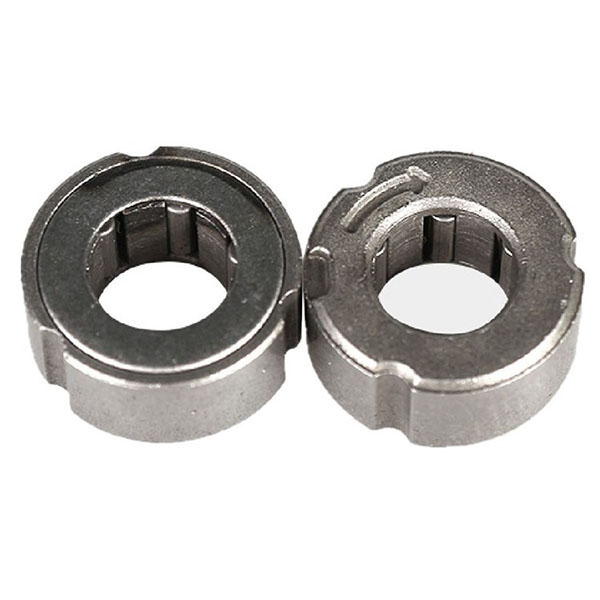

OWC series one way needle bearing EWC series one way needle bearing HFL series one way needle bearing
