EWC;1WC series China Supplier One Way Needle Bearing

Product Description

Feature

PRODUCT NAME: EWC One way clutch (outer lane has raised angles )
ID: The roller pin coupling, the addendum circle has the edges and corners, is advantageous for the localization locking, uses on the fishing equipment, the automatic money counting machine.
MODEL: EWC
MATERIAL:Outer material: ST14 stainless steelNeedle rollerStainless steel or GCr15. Keep the shelf: Strengthen nylon.
PACKING:Customize according to the needs of customer
DETAILS: EWCThis kind of clutch, the outer lane has raised angles, it is easy to make a reservation to lock, used in the fishing tackle (able to bear the sea water and corrode ), some paper money planes.

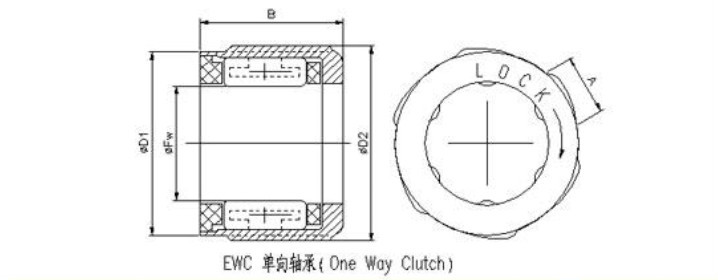

shaft dia.						torque capacity

d	Fw	D1	D2	B	A
mm	mm					N.m (.)	Kg.cm(.)
4	4	8	8.4	6	2.6	0.08	0.82
4	4	8	8.4	6	2.6	0.15	1.53
6	6	10	10.4	8	2.8	0.25	2.55
	6	10	10.4	8	2.8	0.44	4.49
	6	10	10.4	8	2.8	0.44	4.49
	6	10	10.4	12	2.8	0.88	8.98
8	8	12	12.4	9	2.6	0.49	5
	8	12	12.4	9	2.6	0.88	8.98
	8	14.2	15	12	3.6	1.18	12.04
	8	14.2	15	12	3.6	1.96	20
	8	14.2	15	12	3.6	1.96	20
	8	14.2	15	14.5	3.6	2.65	27.04
10	10	16	17	10	5	1.18	12.04
	10	16	17	10	5	1.96	20
	10	16	17	12	5	1.37	13.98
	10	16	17	12	5	2.35	23.98
	10	16	17	12	5	2.35	23.98
12	12	18	19	16	5.1	6.28	64.08
