EWC1010A fishing reel one way bearing/needle bearing
EWC1010A Fishing Reel One Way Bearing/Needle Bearing
Product Description

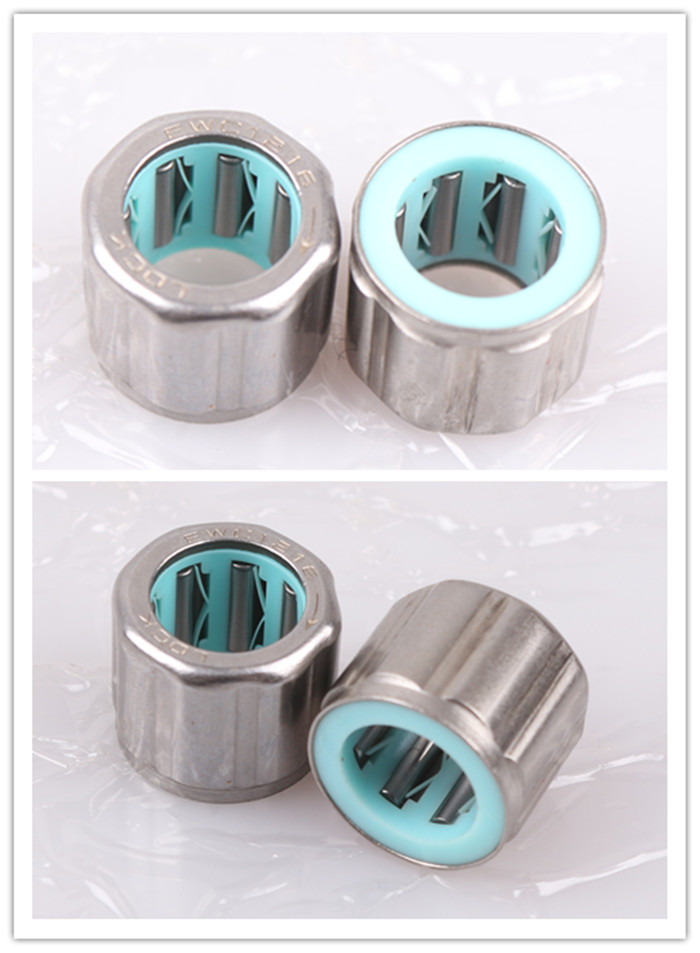

Description of EWC1010A fishing reel one way bearing/needle bearing
EWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and make the structure more compact as well as higher performance.
This kind of clutch, the outer lane has raised angles, it is easy to make a reservation to lock, used in the fishing tackle (able to bear the sea water and corrode ), some paper money planes.
Parameter of EWC1010A fishing reel one way bearing/needle bearing
| Shaft Diameter | Bearing Designation | Mass (g) | Boundary Dimensions | Torque Capacity | |||||||
| mm | EWC series | 1WC series | EWC | 1WC | Fw | D1 | D2 | B | A | (N.m) | (kgf.cm) |
| (with resin spring) | (with metal spring) | ||||||||||
| 4 | EWC0406A | - | 1 | - | 4 | 8 | 8.4 | 6 | 2.6 | 0.08 | 0.8 |
| EWC0406C | - | - | 0.15 | 1.5 | |||||||
| 6 | EWC0606XA | - | 1.4 | - | 6 | 10 | 10 | 6 | 2.8 | 0.19 | 1.9 |
| EWC0606XC | - | - | 0.33 | 3.4 | |||||||
| EWC0608A | - | 1.7 | - | 8 | 0.25 | 2.5 | |||||
| EWC0608C | 1WC0608 | 2 | 0.44 | 4.5 | |||||||
| - | 1WC0612 | - | 3 | 12 | 0.88 | 9 | |||||
| 8 | EWC0809A | - | 2.4 | - | 8 | 12 | 12 | 9 | 2.6 | 0.49 | 5 |
| EWC0809C | - | - | 0.88 | 9 | |||||||
| EWC0812A | - | 5.8 | - | 14 | 15 | 12 | 3.6 | 12 | |||
| EWC0812C | |||||||||||
| 1.18 | |||||||||||
| 1WC0812 | 7 | 1.96 | 20 | ||||||||
| - | 1WC0815 | - | 8 | 15 | 2.65 | 27 | |||||
| 10 | EWC1010A | - | 5.2 | 10 | 16 | 17 | 7 | 1 | 10 | ||
| - | 1WC100914 | - | 3 | 14 | 14 | 9 | 2.5 | 2.25 | 23 | ||
| EWC1010A | - | 6 | - | 16 | 17 | 10 | 5 | 12 | |||
| EWC1010C | 1.18 | ||||||||||
| - | - | 1.96 | 20 | ||||||||
| EWC1012A | - | 6.8 | - | 12 | 14 | ||||||
| EWC1012C | 1.37 | ||||||||||
| 1WC1012 | 8 | 2.35 | 24 | ||||||||
| 12 | EWC1209C | - | 6.2 | - | 12 | 18 | 19 | 9 | 5.1 | 31 | |
| 3.04 | |||||||||||
| - | 1WC1216 | 12 | 16 | 6.28 | 64 | ||||||
