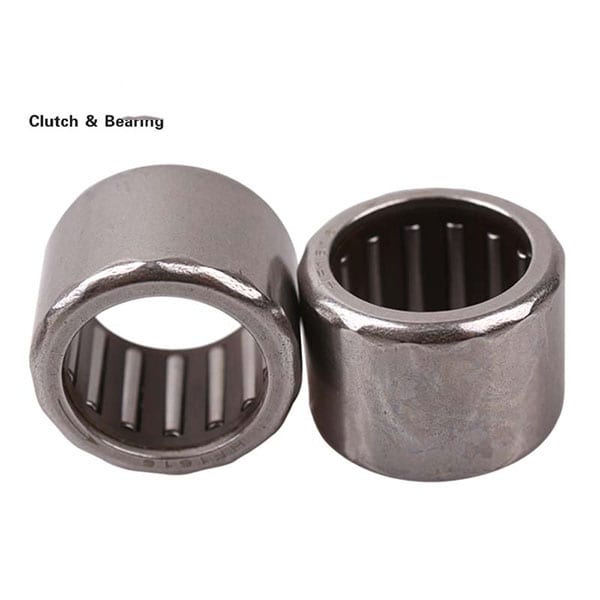

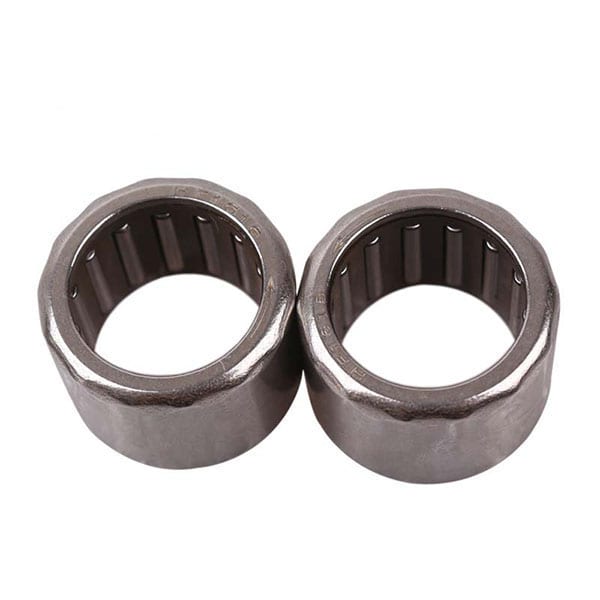

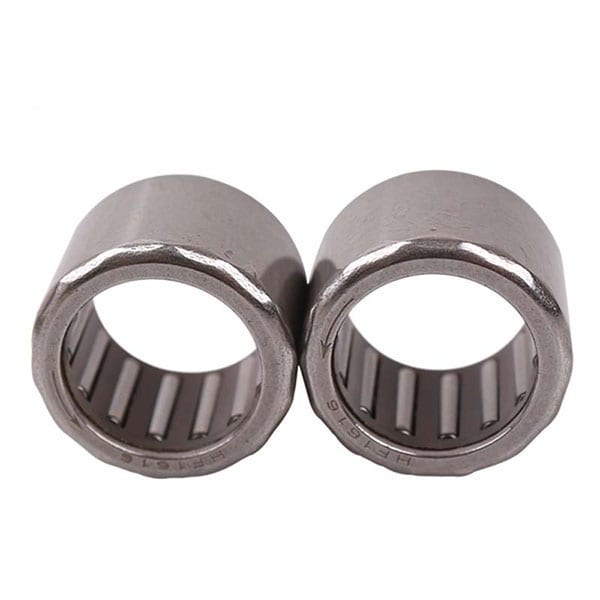

Diabolo Bearing One Way Needle Clutch Bearing HF1012

Diabolo Bearing One Way Needle Clutch Bearing HF1012 Featured Image
  • Diabolo Bearing One Way Needle Clutch Bearing HF1012
  • Diabolo Bearing One Way Needle Clutch Bearing HF1012
  • Diabolo Bearing One Way Needle Clutch Bearing HF1012
  • Diabolo Bearing One Way Needle Clutch Bearing HF1012
  • Diabolo Bearing One Way Needle Clutch Bearing HF1012
  • Diabolo Bearing One Way Needle Clutch Bearing HF1012

Short Description:


Download as PDF

Product Detail

Product Tags

Overview
Quick Details
Type:
Other Type
Brand Name:
SUMA
Model Number:
HF 1012
Place of Origin:
Jiangsu, China (Mainland)
Bore Size:
3 – 35 mm
Outside Diameter:
6.5 – 42 mm
Precision Rating:
P6
Seals Type:
Non sealed
Product name:
needle clutch bearing
Inner diameter:
3-35mm
Outer diameter:
6.5-42mm
Thickness:
6-20mm
Delivery time:
1 day after order is confirmed
Package:
Wooden package or customizable
Torque capacity:
0.2-121Nm
Shaft Overrunning speed:
36000-3900rpm
Material:
ST14
Weight:
0.9-40g

Supply Ability
500000 Piece/Pieces per Month needle clutch bearing

Packaging & Delivery
Packaging Details
Carton Box / Wooden case package for needle clutch bearing
Port
Shanghai, Ningbo for unidirectional needle roller bearing
Lead Time :
10 days after order is confirmed for needle clutch bearing


                    Diabolo Bearing One Way Needle Clutch Bearing HF1012



Product Description



 Features of HF needle clutch bearing

♦ Having a small cross section still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained.
♦ Suitable for unidirectional rotation device.

SPECIFICATIONS
Model  HF1012
Material Outer race: ST14, Holder: Nylon , Needle: Stainless Steel
Inner diameter 10mm
Outer diameter 14mm
Thickness 12mm
Torque capacity  5.3Nm
Weight  4g
Package  roll pack
Delivery time  1 days for sample, 5-7 day for big order
Payment Terms TT, L/C, D/P, D/A, Western Union, Paypal

Catalogue of hf needle clutch bearing for your choice

Shaft Diameter Bearing Designation Mass Approx Dimensions Permissible Torque  Limiting Speed Suitable Drawn Cup Bearings
Fw D C Rotating Shaft Min-1 Rotating Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm rpm
3 HF0306KF   0.9 3 6.5 6 0.2 36000 7000    HK0306TN
4 HF0406KF – 1 4 8 6 0.34 34000 8000    HK0408TN
HF0406KFR – 1 4 8 6 0.1 34000 8000    HK0408TN
6 HF0608KF   2.8 6 10 8 1.5 20000 11000    HK0608
HF0612KF HF0612 3 6 10 12 1.76 23000 13000    HK0608
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000    HK0608
  HF061210 3.5 6 12 10 3 20000 13000    HK061208
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000    HK0808
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000    HK0808
– HF061210 3.2 8 12 10 3 16000 12000    HK0808

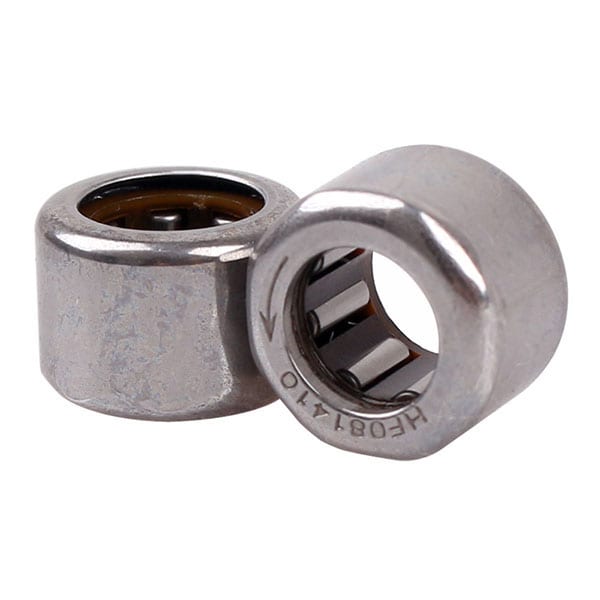

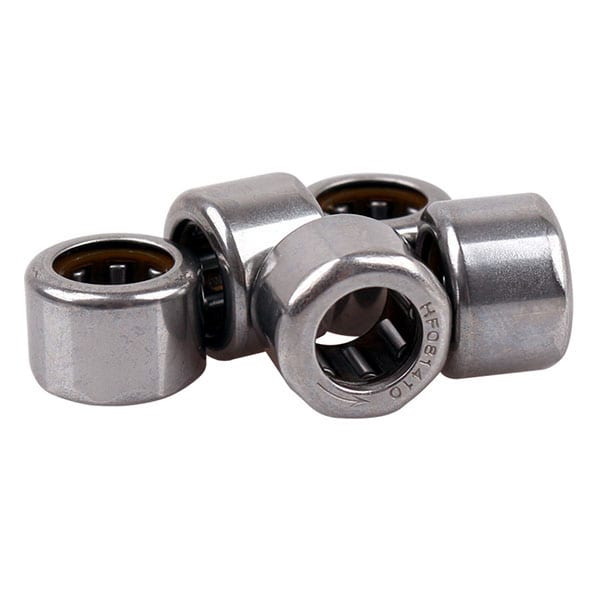

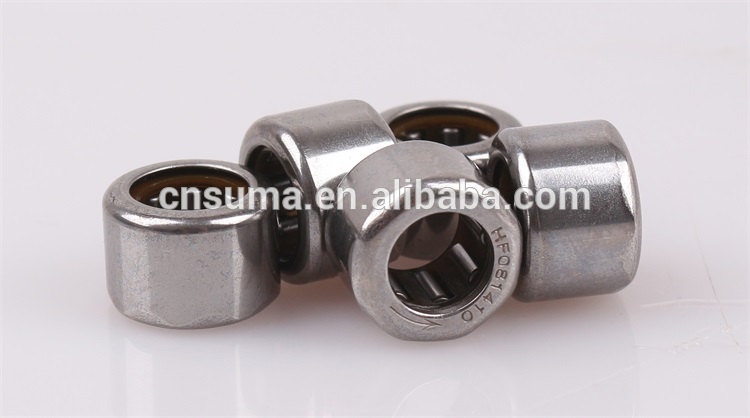

– HF081410 3.6 8 14 10 4.6 15000 11000    HK081410
– HF081610 4.1 8 16 10 5.5 15000 11000      HK081610
– HF081412 4 8 14 12 5 16000 12000    HK081410
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000    HK1010
HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000    HK1010
12 – HF1216 11 12 18 16 12.2 11000 8000    HK1212
14 – HF1416 13 14 20 16 17.3 9500 8000    HK1412
16 – HF1616 14 16 22 16 20.5 8500 7500    HK1612
18 – HF1816 16 18 24 16 24.1 7500 7500    HK1812
20 – HF2016 17 20 26 16 28.5 7000 6500    HK2010
25 – HF2520 30 25 32 20 66 5500 5500    HK2512
30 – HF3020 36 30 37 20 90 4500 4500    HK3012
35 – HF3520 40 35 42 20 121 3900 3900    HK3512



Detailed Images





Company Information



Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Production flow
Certifications
Clients Visit
FAQ

Q: How do you pack the hf needle clutch bearing ?

A: Usually hf unidirectional needle clutch bearing are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of hf needle clutch bearing from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the hf needle clutch bearing in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
