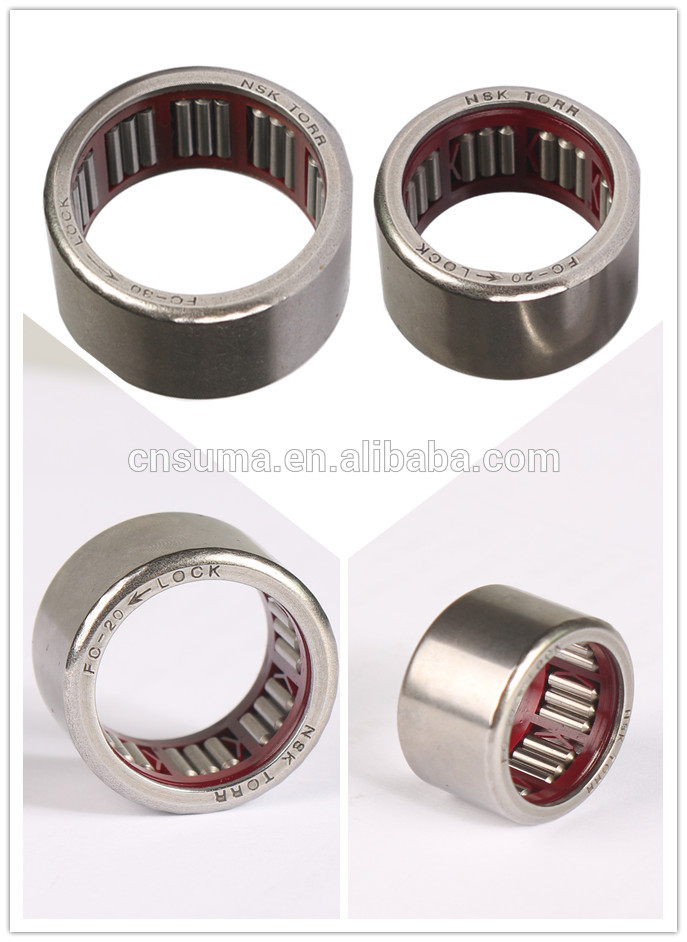

6x10x12 FC6K one way rotation bearings with needle rollers
6x10x12 FC6K one way rotation bearings with needle rollers
Product Description
Description of 6x10x12 FC6K one way rotation bearings with needle rollers
| Item | FC6K One Way Needle Bearing |
| Material | Gcr15, Stainless steel |
| Size (mm) | 6x10x12 |
| Weight (g) | 3 |
| Torque (N.m) | 1.76 |
| Gurantee | 1 year |
| Feature | Having a small cross section still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained. |
| Application | Suitable for unidirectional rotation device. |
| Operating temperature range | -30 ° C to +180 ° C |
| Customize | Accept |
Parameter of 6x10x12 FC6K one way rotation bearings with needle rollers
| Type | Weight (g) | Dimesion | |||
| Fw | D | C | Rotational torque (N.m) | ||
| FC4K | 1 | 4 | 8 | 6 | 0.34 |
| FC6 | 3 | 6 | 10 | 12 | 1.76 |
| FC6K | 3 | 6 | 10 | 12 | 1.76 |
| FC8 | 4 | 8 | 14 | 12 | 5.3 |
| FCL8K | 3.5 | 8 | 12 | 12 | 5 |
| FC10 | 4.8 | 10 | 16 | 12 | 6 |
| FCL10K | 4 | 10 | 14 | 12 | 5.3 |
| FC12 | 11 | 12 | 18 | 16 | 12.2 |
| FC14K | 13 | 14 | 20 | 16 | 17.3 |
| FC16 | 14 | 16 | 22 | 16 | 20.5 |
| FC20 | 17 | 20 | 26 | 16 | 28.5 |
| FC25 | 30 | 25 | 32 | 20 | 66 |
| FC30 | 36 | 30 | 37 | 20 | 90 |
| FC35 | 40 | 35 | 42 | 20 | 121 |
| FCB8 | 10 | 14 | 14 | 20 | 5 |
| FCB10 | 15 | 16 | 16 | 20 | 10 |
| FCB12 | 18 | 18 | 18 | 26 | 12.2 |
| FCB16 | 22 | 22 | 22 | 26 | 20.5 |
| FCB20 | 27 | 26 | 26 | 26 | 28.5 |
| FCB25 | 44 | 32 | 32 | 30 | 66 |
| FCB30 | 51 | 37 | 37 | 30 | 90 |
| FCB35 | 58 | 42 | 42 | 30 | 121 |
