2019 wholesale price Ax Series Needle Bearing Ax3552 Ax3553 Ax4060 Ax4565 Flat/plane Thrust Needle Roller Bearing
To regularly increase the management program by virtue from the rule of “sincerely, good religion and high quality are the base of enterprise development”, we greatly absorb the essence of linked products internationally, and constantly produce new goods to satisfy the calls for of shoppers for 2019 wholesale price Ax Series Needle Bearing Ax3552 Ax3553 Ax4060 Ax4565 Flat/plane Thrust Needle Roller Bearing, “Quality”, “honesty” and “service” is our principle. Our loyalty and commitments remain respectfully at your provider. Make contact with Us Today For more data, make contact with us now.
To regularly increase the management program by virtue from the rule of “sincerely, good religion and high quality are the base of enterprise development”, we greatly absorb the essence of linked products internationally, and constantly produce new goods to satisfy the calls for of shoppers for Ax Series Needle Bearing, Bearing Ax1932 Ax2035 Ax2542 Ax2744 Ax3047, Needle Bearing Ax1932 Ax2035 Ax2542 Ax2744 Ax3047, Looking forward, we are going to keep pace with the times, continuing to create new merchandise. With our strong research team, advanced production facilities, scientific management and top services, we’ll supply high quality merchandise to our customers worldwide. We sincerely invite you to be our business partners for mutual benefits.
Feature

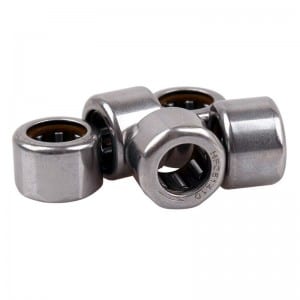

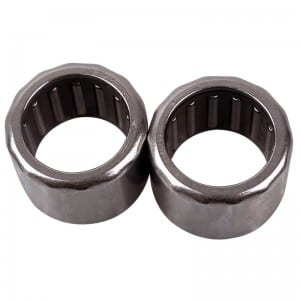

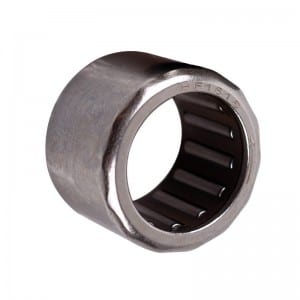

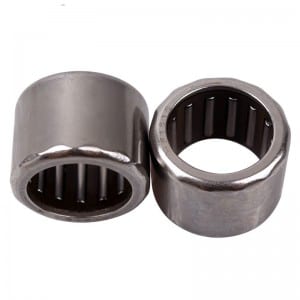

One way clutch -drawn cup roller clutches /clutch and bearing assemblies, It may take the switch, the prevent returning installment, the overdrive clutch. HF, FC, RC (roller pin coupling): Is composed of the drawn cup and the plastic retainer; The retainer may bring the plastic reed also to be possible on the stainless steel reed guidance roller pin, in the addendum circle incline roller conveyer and the roller pin takes the locking arrangement. HFL, FCB, RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling’s both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module. MATERIAL: The outer covering is generally the ST14 low-carbon steel (special occasion may use stainless steel); Keep the shelf usually strengthening nylon; The needle is a bearing steel to roll, produce according to the needs of customer too. For example: Unidirectional HF2016 is widely applied on the washer bearing!
meter | Mass Approx | Torgue Ma | 1 | |||||||
Borndary Dimensions |
||||||||||
Clutch Designation |
Limiting Speed | Suitable Drawn Cup Bearings |
||||||||
Fw | D | C | Rotating Shaft Min-1 |
Rotatng Outer Ring Min-1 |
||||||
mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | ||||
HF | ||||||||||
3 | HF0306KF | 0.9 | 3 | 6.5 | 6 | 0.2 | 36000 | 7000 | HK0306TN | |
4 | HF0406KF | – | 1 | 4 | 8 | 6 | 0.34 | 34000 | 8000 | HK0408TN |
HF0406KFR | – | 1 | 4 | 8 | 6 | 0.1 | 34000 | 8000 | HK0408TN | |
6 | HF0608KF | 2.8 | 6 | 10 | 8 | 1.5 | 20000 | 11000 | HK0608 | |
HF0612KF | HF0612 | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
HF0612KFR | HF0612R | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
HF061210 | 3.5 | 6 | 12 | 10 | 3 | 20000 | 13000 | HK061208 | ||
8 | HF0812KF | HF0812 | 3.5 | 8 | 12 | 12 | 3.15 | 17000 | 12000 | HK0808 |
HF0812KFR | HF0812R | 3.5 | 8 | 12 | 12 | 4 | 17000 | 12000 | HK0808 | |
– | HF061210 | 3.2 | 8 | 12 | 10 | 3 | 16000 | 12000 | HK0808 | |
– | HF081410 | 3.6 | 8 | 14 | 10 | 4.6 | 15000 | 11000 | HK081410 | |
– | HF081610 | 4.1 | 8 | 16 | 10 | 5.5 | 15000 | 11000 | HK081610 | |
– | HF081412 | 4 | 8 | 14 | 12 | 5 | 16000 | 12000 | HK081410 | |
10 | HF1012KF | HF1012 | 4 | 10 | 14 | 12 | 5.3 | 14000 | 11000 | HK1010 |
HF1012KFR | HF1012R | 4 | 10 | 14 | 12 | 1.5 | 14000 | 11000 | HK1010 | |
12 | – | HF1216 | 11 | 12 | 18 | 16 | 12.2 | 11000 | 8000 | HK1212 |
14 | – | HF1416 | 13 | 14 | 20 | 16 | 17.3 | 9500 | 8000 | HK1412 |
16 | – | HF1616 | 14 | 16 | 22 | 16 | 20.5 | 8500 | 7500 | HK1612 |
18 | – | HF1816 | 16 | 18 | 24 | 16 | 24.1 | 7500 | 7500 | HK1812 |
20 | – | HF2016 | 17 | 20 | 26 | 16 | 28.5 | 7000 | 6500 | HK2010 |
25 | – | HF2520 | 30 | 25 | 32 | 20 | 66 | 5500 | 5500 | HK2512 |
30 | – | HF3020 | 36 | 30 | 37 | 20 | 90 | 4500 | 4500 | HK3012 |
35 | – | HF3520 | 40 | 35 | 42 | 20 | 121 | 3900 | 3900 |
